39.1 Beyond Linear Methods

In Chapter 38, we introduced Principal Component Analysis (PCA) as a powerful tool for dimensionality reduction. PCA works by finding linear combinations of variables that maximize variance. However, PCA has a fundamental limitation: it can only capture linear relationships.

Real biological data often contains complex, non-linear structure:

Cell populations in single-cell RNA-seq form distinct clusters with non-linear boundaries
Developmental trajectories follow curved paths through gene expression space
Protein structures exhibit complex geometric relationships

When data lies on a curved manifold in high-dimensional space, linear methods like PCA may fail to reveal the true structure. This chapter introduces two powerful non-linear methods: t-SNE and UMAP.

39.2 Limitations of PCA

To see where PCA falls short, consider a simple example: data arranged in a curved pattern.

Code

# Generate data on a curved manifold (Swiss roll-like)
set.seed(42)
n <- 500
t <- runif(n, 0, 4*pi)
x <- t * cos(t)
y <- t * sin(t)
z <- runif(n, 0, 10)
color <- t  # Color by position along curve

curved_data <- data.frame(x = x, y = y, z = z, t = t)

# PCA
pca_result <- prcomp(curved_data[, 1:3], scale. = TRUE)

par(mfrow = c(1, 3))

# Original 3D projection
plot(curved_data$x, curved_data$y, col = heat.colors(100)[cut(color, 100)],
     pch = 19, cex = 0.5, xlab = "X", ylab = "Y",
     main = "Original Data (X-Y projection)")

# PCA result
plot(pca_result$x[, 1], pca_result$x[, 2],
     col = heat.colors(100)[cut(color, 100)],
     pch = 19, cex = 0.5, xlab = "PC1", ylab = "PC2",
     main = "PCA")

# What we want: unfolded
plot(t, z, col = heat.colors(100)[cut(color, 100)],
     pch = 19, cex = 0.5, xlab = "Position along curve", ylab = "Z",
     main = "Ideal: Unfolded Manifold")

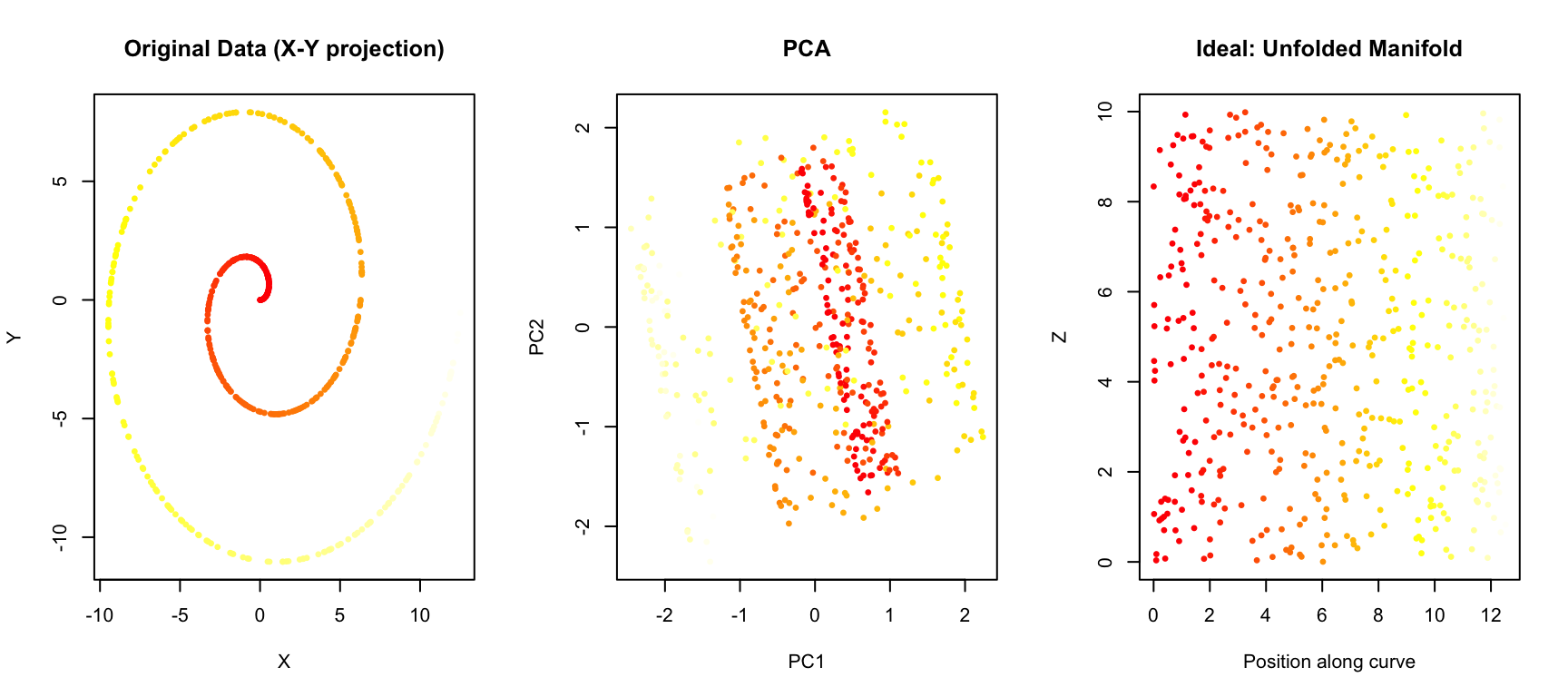

Figure 39.1: PCA captures the direction of maximum variance but fails to ‘unfold’ the curved structure. The first PC spreads points along the curve but mixes points from different parts.

PCA projects the data onto the directions of maximum variance, but it cannot “unfold” the curved structure. Points that are far apart along the manifold (different colors) may end up close together in the PCA projection.

39.3 t-SNE: t-distributed Stochastic Neighbor Embedding

t-SNE (t-distributed Stochastic Neighbor Embedding) (Maaten and Hinton 2008) is a non-linear dimensionality reduction technique designed specifically for visualization. It was introduced by van der Maaten and Hinton in 2008 and has become one of the most popular methods for visualizing high-dimensional data.

How t-SNE Works

The core idea of t-SNE is to preserve local neighborhood structure. Points that are close together in high-dimensional space should remain close together in the low-dimensional embedding.

The algorithm works in two steps:

Step 1: Define similarities in high-dimensional space

For each pair of points $i$ and $j$, t-SNE computes a probability $p_{ij}$ that represents how likely point $j$ would be picked as a neighbor of point $i$ if neighbors were chosen in proportion to their probability density under a Gaussian centered at $i$:

\[ p_{j|i} = \frac{\exp(-\|x_i - x_j\|^2 / 2\sigma_i^2)}{\sum_{k \neq i} \exp(-\|x_i - x_k\|^2 / 2\sigma_i^2)} \]

The variance $\sigma_i$ is chosen so that each point has a fixed number of effective neighbors (controlled by the perplexity parameter).

Step 2: Define similarities in low-dimensional space

In the low-dimensional embedding, t-SNE uses a t-distribution (with one degree of freedom, i.e., a Cauchy distribution) to compute similarities:

\[ q_{ij} = \frac{(1 + \|y_i - y_j\|^2)^{-1}}{\sum_{k \neq l} (1 + \|y_k - y_l\|^2)^{-1}} \]

The t-distribution has heavier tails than a Gaussian, which allows dissimilar points to be placed far apart without incurring a large penalty.

Step 3: Minimize the divergence

t-SNE then minimizes the Kullback-Leibler divergence between the two distributions using gradient descent:

\[ KL(P \| Q) = \sum_{i \neq j} p_{ij} \log \frac{p_{ij}}{q_{ij}} \]

This pushes the low-dimensional embedding to match the neighborhood structure of the high-dimensional data.

The Perplexity Parameter

Perplexity is the most important parameter in t-SNE. It loosely corresponds to the number of effective nearest neighbors considered for each point. Typical values range from 5 to 50.

Low perplexity: Focuses on very local structure; may create many small, disconnected clusters
High perplexity: Considers more global structure; clusters may merge together

Code

# Use MNIST digits for demonstration
if (!exists("mnist")) mnist <- read_mnist()

# Sample for speed
set.seed(42)
idx <- sample(1:nrow(mnist$train$images), 2000)
x_sample <- mnist$train$images[idx, ]
labels <- mnist$train$labels[idx]

# t-SNE with different perplexities
tsne_5 <- Rtsne(x_sample, perplexity = 5, verbose = FALSE, max_iter = 500)
tsne_30 <- Rtsne(x_sample, perplexity = 30, verbose = FALSE, max_iter = 500)
tsne_100 <- Rtsne(x_sample, perplexity = 100, verbose = FALSE, max_iter = 500)

par(mfrow = c(1, 3))
plot(tsne_5$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 5")
plot(tsne_30$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 30")
plot(tsne_100$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 100")

Figure 39.2: Effect of perplexity on t-SNE embeddings. Low perplexity emphasizes local structure (may fragment clusters), high perplexity emphasizes global structure (may merge clusters).

t-SNE in R

The Rtsne package provides an efficient implementation:

Code

# Full t-SNE with good parameters
set.seed(42)
tsne_result <- Rtsne(x_sample, perplexity = 30, verbose = FALSE, max_iter = 1000)

# Plot with digit labels
df_tsne <- data.frame(
  tSNE1 = tsne_result$Y[, 1],
  tSNE2 = tsne_result$Y[, 2],
  digit = factor(labels)
)

ggplot(df_tsne, aes(tSNE1, tSNE2, color = digit)) +
  geom_point(alpha = 0.6, size = 1) +
  scale_color_brewer(palette = "Spectral") +
  labs(title = "t-SNE of MNIST Digits",
       x = "t-SNE Dimension 1", y = "t-SNE Dimension 2") +
  theme(legend.position = "right")

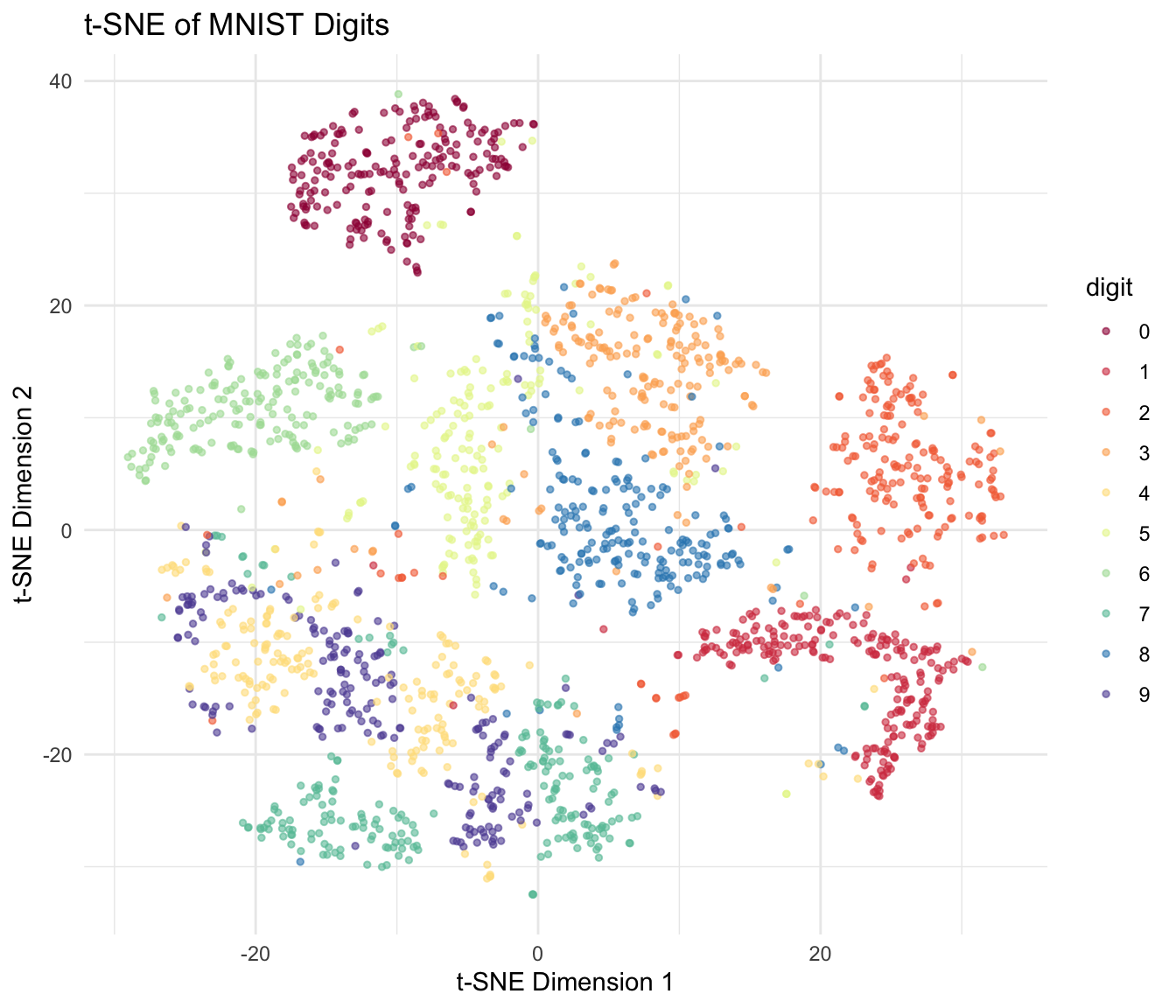

Figure 39.3: t-SNE visualization of MNIST digits reveals clear cluster structure corresponding to digit classes

Important Considerations for t-SNE

t-SNE Caveats

Cluster sizes are meaningless: t-SNE does not preserve density. A large cluster in t-SNE does not mean more points.
Distances between clusters are meaningless: Only local structure is preserved. The distance between two clusters tells you nothing about their true similarity.
Results depend on random initialization: Always set a seed for reproducibility. Run multiple times to check stability.
Perplexity must be tuned: There’s no universally best value. Try multiple perplexities to understand your data.
Computationally expensive: O(n²) complexity; can be slow for large datasets. Use PCA preprocessing to speed up.

39.4 UMAP: Uniform Manifold Approximation and Projection

UMAP (Uniform Manifold Approximation and Projection) (McInnes, Healy, and Melville 2018) is a more recent algorithm that has become increasingly popular, especially in single-cell genomics. UMAP is often faster than t-SNE and may better preserve global structure.

How UMAP Works

UMAP is grounded in Riemannian geometry and algebraic topology, but the practical intuition is similar to t-SNE: preserve neighborhood relationships.

Key differences from t-SNE:

Mathematical foundation: UMAP assumes the data lies on a uniformly distributed manifold and uses concepts from topological data analysis.
Graph-based approach: UMAP constructs a weighted graph representing the high-dimensional data, then optimizes a low-dimensional graph to match it.
Different cost function: UMAP uses cross-entropy rather than KL divergence, which may help preserve more global structure.
Faster: UMAP typically runs faster than t-SNE, especially on large datasets.

Key UMAP Parameters

n_neighbors: Similar to perplexity in t-SNE. Controls the balance between local and global structure. Typical values: 5-50.
min_dist: Controls how tightly UMAP packs points together. Small values create tighter clusters. Typical values: 0.0-0.5.
metric: Distance metric used. Default is Euclidean, but many options available.

UMAP in R

The umap package provides a convenient interface:

Code

# UMAP
set.seed(42)
umap_result <- umap(x_sample, n_neighbors = 15, min_dist = 0.1)

Error in `umap()`:
! could not find function "umap"

Code

# Plot
df_umap <- data.frame(
  UMAP1 = umap_result$layout[, 1],
  UMAP2 = umap_result$layout[, 2],
  digit = factor(labels)
)

Error:
! object 'umap_result' not found

Code

ggplot(df_umap, aes(UMAP1, UMAP2, color = digit)) +
  geom_point(alpha = 0.6, size = 1) +
  scale_color_brewer(palette = "Spectral") +
  labs(title = "UMAP of MNIST Digits",
       x = "UMAP Dimension 1", y = "UMAP Dimension 2") +
  theme(legend.position = "right")

Error:
! object 'df_umap' not found

Effect of UMAP Parameters

Code

# Different parameter combinations
par(mfrow = c(2, 3))

# Vary n_neighbors
for (nn in c(5, 15, 50)) {
  set.seed(42)
  result <- umap(x_sample, n_neighbors = nn, min_dist = 0.1)
  plot(result$layout, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
       xlab = "UMAP 1", ylab = "UMAP 2",
       main = paste("n_neighbors =", nn, ", min_dist = 0.1"))
}

Error in `umap()`:
! could not find function "umap"

Code

# Vary min_dist
for (md in c(0.0, 0.1, 0.5)) {
  set.seed(42)
  result <- umap(x_sample, n_neighbors = 15, min_dist = md)
  plot(result$layout, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
       xlab = "UMAP 1", ylab = "UMAP 2",
       main = paste("n_neighbors = 15, min_dist =", md))
}

Error in `umap()`:
! could not find function "umap"

39.5 Comparing PCA, t-SNE, and UMAP

Let’s directly compare these three methods on the same dataset:

Code

# PCA
pca_result <- prcomp(x_sample)

par(mfrow = c(1, 3))

# PCA
plot(pca_result$x[, 1], pca_result$x[, 2],
     col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
     xlab = "PC1", ylab = "PC2", main = "PCA")
legend("topright", legend = 0:9, col = rainbow(10), pch = 19, cex = 0.6, ncol = 2)

# t-SNE
plot(tsne_result$Y[, 1], tsne_result$Y[, 2],
     col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE")

# UMAP
plot(umap_result$layout[, 1], umap_result$layout[, 2],
     col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
     xlab = "UMAP 1", ylab = "UMAP 2", main = "UMAP")

Error:
! object 'umap_result' not found

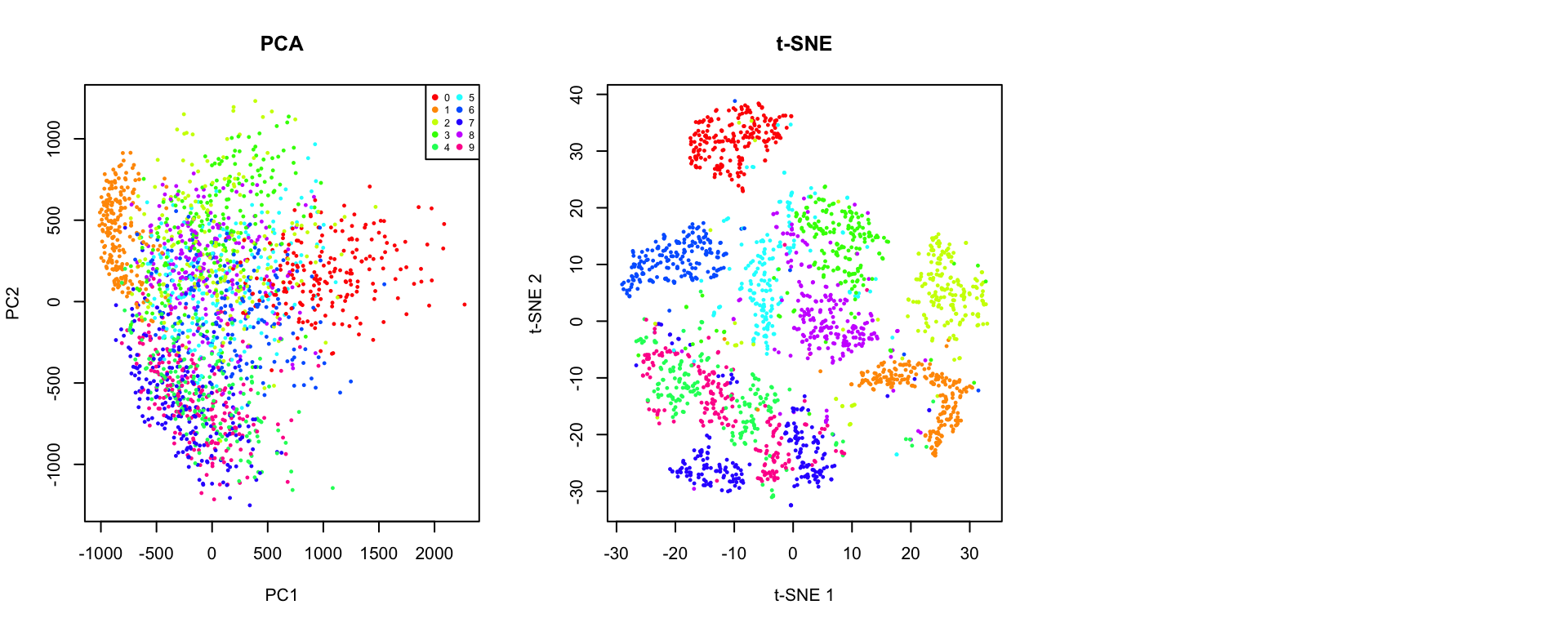

Figure 39.4: Comparison of PCA, t-SNE, and UMAP on MNIST digits. PCA captures global variance but mixes clusters; t-SNE and UMAP reveal clear cluster structure.

Key Differences

Aspect	PCA	t-SNE	UMAP
Type	Linear	Non-linear	Non-linear
Preserves	Global variance	Local structure	Local + some global
Speed	Very fast	Slow (O(n²))	Fast
Reproducibility	Deterministic	Stochastic	Stochastic
New data	Can project	Must rerun	Can project (with care)
Interpretable axes	Yes (loadings)	No	No
Cluster distances	Meaningful	Not meaningful	Somewhat meaningful
Best for	Preprocessing, linear patterns	Visualization	Visualization, larger data

When to Use Each Method

Use PCA when:

You need interpretable dimensions (loadings)
You want to preprocess data before other analyses
The data structure is approximately linear
You need to project new data points
Speed is critical

Use t-SNE when:

Visualization is the primary goal
You want to explore local cluster structure
Dataset size is moderate (< 50,000 points)
You’ll examine multiple perplexity values

Use UMAP when:

You have large datasets
You want faster computation than t-SNE
You care about preserving some global structure
You need to embed new points (though with caveats)

39.6 Biological Applications

Single-Cell RNA-seq

One of the most common applications of t-SNE and UMAP is visualizing single-cell transcriptomic data:

Code

# Simulated single-cell-like data with distinct populations
set.seed(123)
n_cells <- 1000
n_genes <- 50

# Simulate 4 cell types
cell_types <- sample(1:4, n_cells, replace = TRUE, prob = c(0.4, 0.3, 0.2, 0.1))

# Generate expression data with cell-type-specific patterns
expression <- matrix(rnorm(n_cells * n_genes), nrow = n_cells)
for (i in 1:4) {
  idx <- cell_types == i
  # Add cell-type specific signal to first few genes
  expression[idx, 1:10] <- expression[idx, 1:10] + i * 2
  expression[idx, (i*10):(i*10+5)] <- expression[idx, (i*10):(i*10+5)] + 3
}

# Apply methods
pca_cells <- prcomp(expression, scale. = TRUE)
tsne_cells <- Rtsne(expression, perplexity = 30, verbose = FALSE)
umap_cells <- umap(expression, n_neighbors = 15)

Error in `umap()`:
! could not find function "umap"

Code

par(mfrow = c(1, 3))
plot(pca_cells$x[, 1:2], col = cell_types, pch = 19, cex = 0.5,
     xlab = "PC1", ylab = "PC2", main = "PCA")
legend("topright", legend = paste("Type", 1:4), col = 1:4, pch = 19, cex = 0.7)

plot(tsne_cells$Y, col = cell_types, pch = 19, cex = 0.5,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE")

plot(umap_cells$layout, col = cell_types, pch = 19, cex = 0.5,
     xlab = "UMAP 1", ylab = "UMAP 2", main = "UMAP")

Error:
! object 'umap_cells' not found

Figure 39.5: t-SNE and UMAP are commonly used to visualize cell populations in single-cell genomics data

39.7 Practical Workflow

A typical workflow for non-linear dimensionality reduction:

Preprocess data: Normalize, scale, and filter features
Apply PCA first: Reduce to 50-100 dimensions to speed up t-SNE/UMAP
Run t-SNE or UMAP: With appropriate parameters
Explore parameters: Try multiple perplexity/n_neighbors values
Validate: Compare with known labels or biological markers
Iterate: Adjust preprocessing and parameters as needed

Code

# PCA preprocessing example
# First reduce to 50 PCs, then run t-SNE
pca_50 <- prcomp(x_sample)$x[, 1:50]

set.seed(42)
tsne_after_pca <- Rtsne(pca_50, perplexity = 30, verbose = FALSE,
                         pca = FALSE)  # Already did PCA

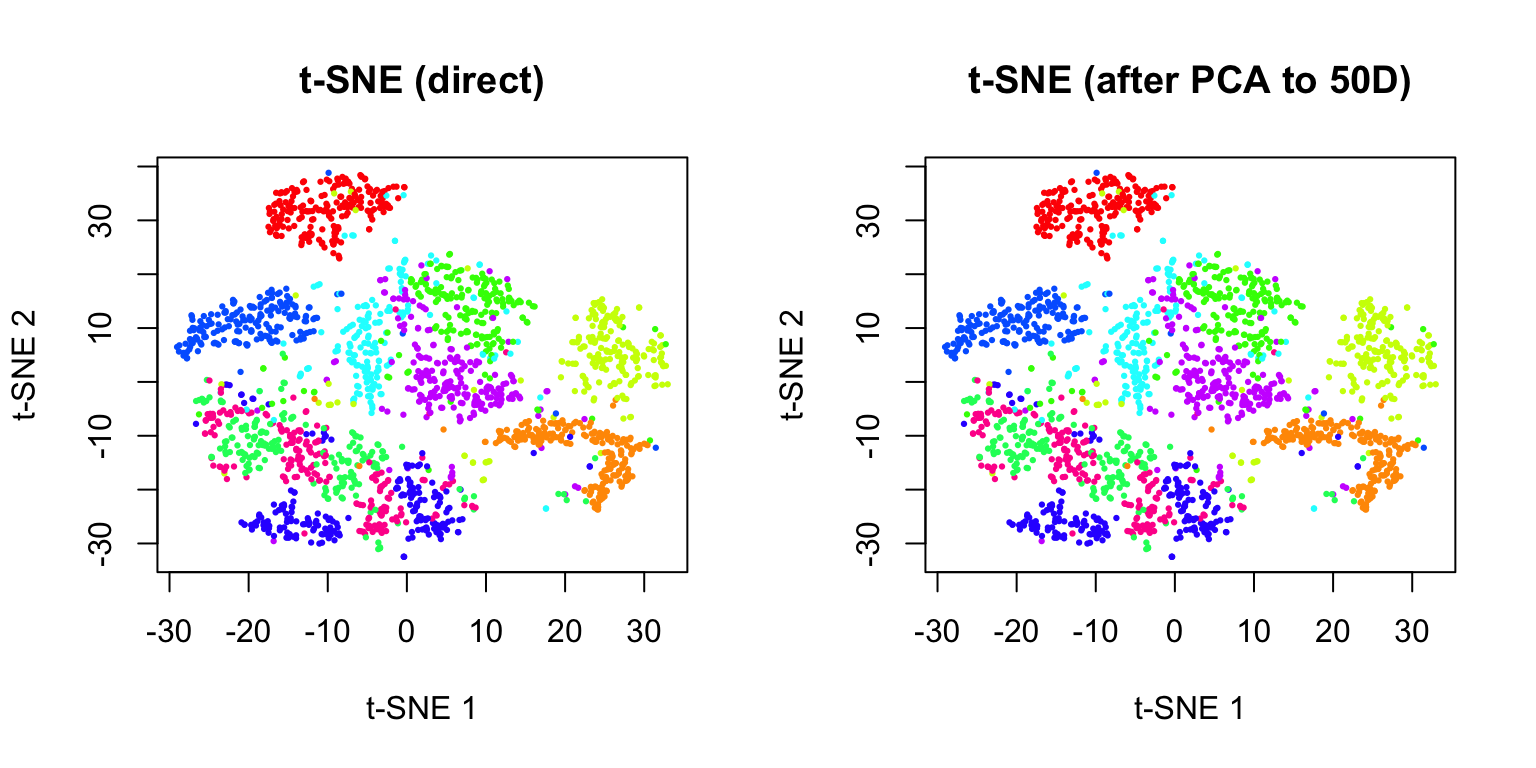

par(mfrow = c(1, 2))
plot(tsne_result$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE (direct)")
plot(tsne_after_pca$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3,
     xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE (after PCA to 50D)")

Figure 39.6: Using PCA as a preprocessing step before t-SNE speeds computation and can improve results by removing noise

Best Practices

Always set a random seed for reproducibility
Try multiple parameter values and compare results
Use PCA preprocessing for large, high-dimensional datasets
Don’t over-interpret cluster sizes or inter-cluster distances
Run multiple times to assess stability of results
Validate findings with independent methods or known biology

39.8 Exercises

Exercise TU.1: Comparing Methods

Load the tissue_gene_expression dataset and apply PCA, t-SNE, and UMAP. Compare how well each method separates the different tissue types.

Exercise TU.2: t-SNE Perplexity

For the t-SNE analysis, try perplexity values of 5, 15, 30, and 50. Which value produces the clearest separation of tissue types?

Exercise TU.3: UMAP Parameters

For UMAP, experiment with n_neighbors values of 5, 15, and 50, and min_dist values of 0.0, 0.1, and 0.5. How do these parameters affect the visualization?

Exercise TU.4: Stability Analysis

Run t-SNE on the MNIST digit dataset multiple times with different random seeds. How stable are the cluster positions? Do the same digits always cluster together?

Exercise TU.5: Computation Time

Time how long PCA, t-SNE, and UMAP take to run on increasing subsets of data (500, 1000, 2000, 5000 points). Plot computation time versus sample size.

Exercise TU.6: PCA Preprocessing

Apply PCA preprocessing (reducing to 50 dimensions) before running t-SNE. Compare the results and computation time to running t-SNE directly on the full data.

39.9 Summary

Non-linear dimensionality reduction methods can reveal structure that linear methods like PCA miss
t-SNE is designed for visualization and excels at preserving local neighborhood structure
- The perplexity parameter controls the balance between local and global structure
- Cluster sizes and inter-cluster distances are not meaningful
- Results depend on random initialization—set a seed for reproducibility
UMAP is a newer alternative that is often faster and may preserve more global structure
- Key parameters are n_neighbors and min_dist
- Generally faster than t-SNE, especially on large datasets
PCA vs t-SNE vs UMAP:
- PCA: Fast, interpretable, preserves global variance, works well for linear structure
- t-SNE: Best for visualizing local cluster structure, computationally expensive
- UMAP: Good balance of speed and quality, preserves some global structure
Best practices: Use PCA preprocessing, try multiple parameter values, validate results, don’t over-interpret

39.10 Additional Resources

van der Maaten & Hinton (2008). Visualizing Data using t-SNE. JMLR
McInnes et al. (2018). UMAP: Uniform Manifold Approximation and Projection. arXiv
Kobak & Berens (2019). The art of using t-SNE for single-cell transcriptomics. Nature Communications
James et al. (2023) - Additional perspectives on dimensionality reduction

# Non-Linear Dimensionality Reduction: t-SNE and UMAP {#sec-tsne-umap} ```{r} #| echo: false #| message: false library(tidyverse) library(Rtsne) library(umap) library(dslabs) theme_set(theme_minimal()) ``` ## Beyond Linear Methods In @sec-dimensionality-reduction, we introduced Principal Component Analysis (PCA) as a powerful tool for dimensionality reduction. PCA works by finding linear combinations of variables that maximize variance. However, PCA has a fundamental limitation: it can only capture **linear** relationships. Real biological data often contains complex, non-linear structure: - Cell populations in single-cell RNA-seq form distinct clusters with non-linear boundaries - Developmental trajectories follow curved paths through gene expression space - Protein structures exhibit complex geometric relationships When data lies on a curved **manifold** in high-dimensional space, linear methods like PCA may fail to reveal the true structure. This chapter introduces two powerful non-linear methods: **t-SNE** and **UMAP**. ## Limitations of PCA To see where PCA falls short, consider a simple example: data arranged in a curved pattern. ```{r} #| label: fig-pca-limitation #| fig-cap: "PCA captures the direction of maximum variance but fails to 'unfold' the curved structure. The first PC spreads points along the curve but mixes points from different parts." #| fig-width: 9 #| fig-height: 4 # Generate data on a curved manifold (Swiss roll-like) set.seed(42) n <- 500 t <- runif(n, 0, 4*pi) x <- t * cos(t) y <- t * sin(t) z <- runif(n, 0, 10) color <- t # Color by position along curve curved_data <- data.frame(x = x, y = y, z = z, t = t) # PCA pca_result <- prcomp(curved_data[, 1:3], scale. = TRUE) par(mfrow = c(1, 3)) # Original 3D projection plot(curved_data$x, curved_data$y, col = heat.colors(100)[cut(color, 100)], pch = 19, cex = 0.5, xlab = "X", ylab = "Y", main = "Original Data (X-Y projection)") # PCA result plot(pca_result$x[, 1], pca_result$x[, 2], col = heat.colors(100)[cut(color, 100)], pch = 19, cex = 0.5, xlab = "PC1", ylab = "PC2", main = "PCA") # What we want: unfolded plot(t, z, col = heat.colors(100)[cut(color, 100)], pch = 19, cex = 0.5, xlab = "Position along curve", ylab = "Z", main = "Ideal: Unfolded Manifold") ``` PCA projects the data onto the directions of maximum variance, but it cannot "unfold" the curved structure. Points that are far apart along the manifold (different colors) may end up close together in the PCA projection. ## t-SNE: t-distributed Stochastic Neighbor Embedding **t-SNE** (t-distributed Stochastic Neighbor Embedding) [@vandermaaten2008visualizing] is a non-linear dimensionality reduction technique designed specifically for visualization. It was introduced by van der Maaten and Hinton in 2008 and has become one of the most popular methods for visualizing high-dimensional data. ### How t-SNE Works The core idea of t-SNE is to preserve **local neighborhood structure**. Points that are close together in high-dimensional space should remain close together in the low-dimensional embedding. The algorithm works in two steps: **Step 1: Define similarities in high-dimensional space** For each pair of points $i$ and $j$, t-SNE computes a probability $p_{ij}$ that represents how likely point $j$ would be picked as a neighbor of point $i$ if neighbors were chosen in proportion to their probability density under a Gaussian centered at $i$: $$ p_{j|i} = \frac{\exp(-\|x_i - x_j\|^2 / 2\sigma_i^2)}{\sum_{k \neq i} \exp(-\|x_i - x_k\|^2 / 2\sigma_i^2)} $$ The variance $\sigma_i$ is chosen so that each point has a fixed number of effective neighbors (controlled by the **perplexity** parameter). **Step 2: Define similarities in low-dimensional space** In the low-dimensional embedding, t-SNE uses a **t-distribution** (with one degree of freedom, i.e., a Cauchy distribution) to compute similarities: $$ q_{ij} = \frac{(1 + \|y_i - y_j\|^2)^{-1}}{\sum_{k \neq l} (1 + \|y_k - y_l\|^2)^{-1}} $$ The t-distribution has heavier tails than a Gaussian, which allows dissimilar points to be placed far apart without incurring a large penalty. **Step 3: Minimize the divergence** t-SNE then minimizes the Kullback-Leibler divergence between the two distributions using gradient descent: $$ KL(P \| Q) = \sum_{i \neq j} p_{ij} \log \frac{p_{ij}}{q_{ij}} $$ This pushes the low-dimensional embedding to match the neighborhood structure of the high-dimensional data. ### The Perplexity Parameter **Perplexity** is the most important parameter in t-SNE. It loosely corresponds to the number of effective nearest neighbors considered for each point. Typical values range from 5 to 50. - **Low perplexity**: Focuses on very local structure; may create many small, disconnected clusters - **High perplexity**: Considers more global structure; clusters may merge together ```{r} #| label: fig-tsne-perplexity #| fig-cap: "Effect of perplexity on t-SNE embeddings. Low perplexity emphasizes local structure (may fragment clusters), high perplexity emphasizes global structure (may merge clusters)." #| fig-width: 9 #| fig-height: 4 # Use MNIST digits for demonstration if (!exists("mnist")) mnist <- read_mnist() # Sample for speed set.seed(42) idx <- sample(1:nrow(mnist$train$images), 2000) x_sample <- mnist$train$images[idx, ] labels <- mnist$train$labels[idx] # t-SNE with different perplexities tsne_5 <- Rtsne(x_sample, perplexity = 5, verbose = FALSE, max_iter = 500) tsne_30 <- Rtsne(x_sample, perplexity = 30, verbose = FALSE, max_iter = 500) tsne_100 <- Rtsne(x_sample, perplexity = 100, verbose = FALSE, max_iter = 500) par(mfrow = c(1, 3)) plot(tsne_5$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 5") plot(tsne_30$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 30") plot(tsne_100$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.5, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "Perplexity = 100") ``` ### t-SNE in R The `Rtsne` package provides an efficient implementation: ```{r} #| label: fig-tsne-mnist #| fig-cap: "t-SNE visualization of MNIST digits reveals clear cluster structure corresponding to digit classes" #| fig-width: 7 #| fig-height: 6 # Full t-SNE with good parameters set.seed(42) tsne_result <- Rtsne(x_sample, perplexity = 30, verbose = FALSE, max_iter = 1000) # Plot with digit labels df_tsne <- data.frame( tSNE1 = tsne_result$Y[, 1], tSNE2 = tsne_result$Y[, 2], digit = factor(labels) ) ggplot(df_tsne, aes(tSNE1, tSNE2, color = digit)) + geom_point(alpha = 0.6, size = 1) + scale_color_brewer(palette = "Spectral") + labs(title = "t-SNE of MNIST Digits", x = "t-SNE Dimension 1", y = "t-SNE Dimension 2") + theme(legend.position = "right") ``` ### Important Considerations for t-SNE ::: {.callout-warning} ## t-SNE Caveats 1. **Cluster sizes are meaningless**: t-SNE does not preserve density. A large cluster in t-SNE does not mean more points. 2. **Distances between clusters are meaningless**: Only local structure is preserved. The distance between two clusters tells you nothing about their true similarity. 3. **Results depend on random initialization**: Always set a seed for reproducibility. Run multiple times to check stability. 4. **Perplexity must be tuned**: There's no universally best value. Try multiple perplexities to understand your data. 5. **Computationally expensive**: O(n²) complexity; can be slow for large datasets. Use PCA preprocessing to speed up. ::: ## UMAP: Uniform Manifold Approximation and Projection **UMAP** (Uniform Manifold Approximation and Projection) [@mcinnes2018umap] is a more recent algorithm that has become increasingly popular, especially in single-cell genomics. UMAP is often faster than t-SNE and may better preserve global structure. ### How UMAP Works UMAP is grounded in Riemannian geometry and algebraic topology, but the practical intuition is similar to t-SNE: preserve neighborhood relationships. Key differences from t-SNE: 1. **Mathematical foundation**: UMAP assumes the data lies on a uniformly distributed manifold and uses concepts from topological data analysis. 2. **Graph-based approach**: UMAP constructs a weighted graph representing the high-dimensional data, then optimizes a low-dimensional graph to match it. 3. **Different cost function**: UMAP uses cross-entropy rather than KL divergence, which may help preserve more global structure. 4. **Faster**: UMAP typically runs faster than t-SNE, especially on large datasets. ### Key UMAP Parameters - **n_neighbors**: Similar to perplexity in t-SNE. Controls the balance between local and global structure. Typical values: 5-50. - **min_dist**: Controls how tightly UMAP packs points together. Small values create tighter clusters. Typical values: 0.0-0.5. - **metric**: Distance metric used. Default is Euclidean, but many options available. ### UMAP in R The `umap` package provides a convenient interface: ```{r} #| label: fig-umap-mnist #| fig-cap: "UMAP visualization of MNIST digits. Note the clear separation and potentially better preservation of global structure compared to t-SNE." #| fig-width: 7 #| fig-height: 6 # UMAP set.seed(42) umap_result <- umap(x_sample, n_neighbors = 15, min_dist = 0.1) # Plot df_umap <- data.frame( UMAP1 = umap_result$layout[, 1], UMAP2 = umap_result$layout[, 2], digit = factor(labels) ) ggplot(df_umap, aes(UMAP1, UMAP2, color = digit)) + geom_point(alpha = 0.6, size = 1) + scale_color_brewer(palette = "Spectral") + labs(title = "UMAP of MNIST Digits", x = "UMAP Dimension 1", y = "UMAP Dimension 2") + theme(legend.position = "right") ``` ### Effect of UMAP Parameters ```{r} #| label: fig-umap-params #| fig-cap: "Effect of n_neighbors and min_dist on UMAP embeddings. These parameters control the balance between local detail and global structure." #| fig-width: 9 #| fig-height: 6 # Different parameter combinations par(mfrow = c(2, 3)) # Vary n_neighbors for (nn in c(5, 15, 50)) { set.seed(42) result <- umap(x_sample, n_neighbors = nn, min_dist = 0.1) plot(result$layout, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "UMAP 1", ylab = "UMAP 2", main = paste("n_neighbors =", nn, ", min_dist = 0.1")) } # Vary min_dist for (md in c(0.0, 0.1, 0.5)) { set.seed(42) result <- umap(x_sample, n_neighbors = 15, min_dist = md) plot(result$layout, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "UMAP 1", ylab = "UMAP 2", main = paste("n_neighbors = 15, min_dist =", md)) } ``` ## Comparing PCA, t-SNE, and UMAP Let's directly compare these three methods on the same dataset: ```{r} #| label: fig-method-comparison #| fig-cap: "Comparison of PCA, t-SNE, and UMAP on MNIST digits. PCA captures global variance but mixes clusters; t-SNE and UMAP reveal clear cluster structure." #| fig-width: 10 #| fig-height: 4 # PCA pca_result <- prcomp(x_sample) par(mfrow = c(1, 3)) # PCA plot(pca_result$x[, 1], pca_result$x[, 2], col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "PC1", ylab = "PC2", main = "PCA") legend("topright", legend = 0:9, col = rainbow(10), pch = 19, cex = 0.6, ncol = 2) # t-SNE plot(tsne_result$Y[, 1], tsne_result$Y[, 2], col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE") # UMAP plot(umap_result$layout[, 1], umap_result$layout[, 2], col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "UMAP 1", ylab = "UMAP 2", main = "UMAP") ``` ### Key Differences | Aspect | PCA | t-SNE | UMAP | |:-------|:----|:------|:-----| | **Type** | Linear | Non-linear | Non-linear | | **Preserves** | Global variance | Local structure | Local + some global | | **Speed** | Very fast | Slow (O(n²)) | Fast | | **Reproducibility** | Deterministic | Stochastic | Stochastic | | **New data** | Can project | Must rerun | Can project (with care) | | **Interpretable axes** | Yes (loadings) | No | No | | **Cluster distances** | Meaningful | Not meaningful | Somewhat meaningful | | **Best for** | Preprocessing, linear patterns | Visualization | Visualization, larger data | ### When to Use Each Method **Use PCA when:** - You need interpretable dimensions (loadings) - You want to preprocess data before other analyses - The data structure is approximately linear - You need to project new data points - Speed is critical **Use t-SNE when:** - Visualization is the primary goal - You want to explore local cluster structure - Dataset size is moderate (< 50,000 points) - You'll examine multiple perplexity values **Use UMAP when:** - You have large datasets - You want faster computation than t-SNE - You care about preserving some global structure - You need to embed new points (though with caveats) ## Biological Applications ### Single-Cell RNA-seq One of the most common applications of t-SNE and UMAP is visualizing single-cell transcriptomic data: ```{r} #| label: fig-biology-example #| fig-cap: "t-SNE and UMAP are commonly used to visualize cell populations in single-cell genomics data" #| fig-width: 8 #| fig-height: 4 # Simulated single-cell-like data with distinct populations set.seed(123) n_cells <- 1000 n_genes <- 50 # Simulate 4 cell types cell_types <- sample(1:4, n_cells, replace = TRUE, prob = c(0.4, 0.3, 0.2, 0.1)) # Generate expression data with cell-type-specific patterns expression <- matrix(rnorm(n_cells * n_genes), nrow = n_cells) for (i in 1:4) { idx <- cell_types == i # Add cell-type specific signal to first few genes expression[idx, 1:10] <- expression[idx, 1:10] + i * 2 expression[idx, (i*10):(i*10+5)] <- expression[idx, (i*10):(i*10+5)] + 3 } # Apply methods pca_cells <- prcomp(expression, scale. = TRUE) tsne_cells <- Rtsne(expression, perplexity = 30, verbose = FALSE) umap_cells <- umap(expression, n_neighbors = 15) par(mfrow = c(1, 3)) plot(pca_cells$x[, 1:2], col = cell_types, pch = 19, cex = 0.5, xlab = "PC1", ylab = "PC2", main = "PCA") legend("topright", legend = paste("Type", 1:4), col = 1:4, pch = 19, cex = 0.7) plot(tsne_cells$Y, col = cell_types, pch = 19, cex = 0.5, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE") plot(umap_cells$layout, col = cell_types, pch = 19, cex = 0.5, xlab = "UMAP 1", ylab = "UMAP 2", main = "UMAP") ``` ## Practical Workflow A typical workflow for non-linear dimensionality reduction: 1. **Preprocess data**: Normalize, scale, and filter features 2. **Apply PCA first**: Reduce to 50-100 dimensions to speed up t-SNE/UMAP 3. **Run t-SNE or UMAP**: With appropriate parameters 4. **Explore parameters**: Try multiple perplexity/n_neighbors values 5. **Validate**: Compare with known labels or biological markers 6. **Iterate**: Adjust preprocessing and parameters as needed ```{r} #| label: fig-pca-preprocessing #| fig-cap: "Using PCA as a preprocessing step before t-SNE speeds computation and can improve results by removing noise" #| fig-width: 8 #| fig-height: 4 # PCA preprocessing example # First reduce to 50 PCs, then run t-SNE pca_50 <- prcomp(x_sample)$x[, 1:50] set.seed(42) tsne_after_pca <- Rtsne(pca_50, perplexity = 30, verbose = FALSE, pca = FALSE) # Already did PCA par(mfrow = c(1, 2)) plot(tsne_result$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE (direct)") plot(tsne_after_pca$Y, col = rainbow(10)[labels + 1], pch = 19, cex = 0.3, xlab = "t-SNE 1", ylab = "t-SNE 2", main = "t-SNE (after PCA to 50D)") ``` ::: {.callout-tip} ## Best Practices 1. **Always set a random seed** for reproducibility 2. **Try multiple parameter values** and compare results 3. **Use PCA preprocessing** for large, high-dimensional datasets 4. **Don't over-interpret** cluster sizes or inter-cluster distances 5. **Run multiple times** to assess stability of results 6. **Validate findings** with independent methods or known biology ::: ## Exercises ::: {.callout-note} ### Exercise TU.1: Comparing Methods 1. Load the `tissue_gene_expression` dataset and apply PCA, t-SNE, and UMAP. Compare how well each method separates the different tissue types. ::: ::: {.callout-note} ### Exercise TU.2: t-SNE Perplexity 2. For the t-SNE analysis, try perplexity values of 5, 15, 30, and 50. Which value produces the clearest separation of tissue types? ::: ::: {.callout-note} ### Exercise TU.3: UMAP Parameters 3. For UMAP, experiment with `n_neighbors` values of 5, 15, and 50, and `min_dist` values of 0.0, 0.1, and 0.5. How do these parameters affect the visualization? ::: ::: {.callout-note} ### Exercise TU.4: Stability Analysis 4. Run t-SNE on the MNIST digit dataset multiple times with different random seeds. How stable are the cluster positions? Do the same digits always cluster together? ::: ::: {.callout-note} ### Exercise TU.5: Computation Time 5. Time how long PCA, t-SNE, and UMAP take to run on increasing subsets of data (500, 1000, 2000, 5000 points). Plot computation time versus sample size. ::: ::: {.callout-note} ### Exercise TU.6: PCA Preprocessing 6. Apply PCA preprocessing (reducing to 50 dimensions) before running t-SNE. Compare the results and computation time to running t-SNE directly on the full data. ::: ## Summary - **Non-linear dimensionality reduction** methods can reveal structure that linear methods like PCA miss - **t-SNE** is designed for visualization and excels at preserving local neighborhood structure - The **perplexity** parameter controls the balance between local and global structure - Cluster sizes and inter-cluster distances are not meaningful - Results depend on random initialization—set a seed for reproducibility - **UMAP** is a newer alternative that is often faster and may preserve more global structure - Key parameters are **n_neighbors** and **min_dist** - Generally faster than t-SNE, especially on large datasets - **PCA vs t-SNE vs UMAP**: - PCA: Fast, interpretable, preserves global variance, works well for linear structure - t-SNE: Best for visualizing local cluster structure, computationally expensive - UMAP: Good balance of speed and quality, preserves some global structure - **Best practices**: Use PCA preprocessing, try multiple parameter values, validate results, don't over-interpret ## Additional Resources - van der Maaten & Hinton (2008). Visualizing Data using t-SNE. *JMLR* - McInnes et al. (2018). UMAP: Uniform Manifold Approximation and Projection. *arXiv* - Kobak & Berens (2019). The art of using t-SNE for single-cell transcriptomics. *Nature Communications* - @james2023islr - Additional perspectives on dimensionality reduction
