23  Simple Linear Regression

23.1 From Correlation to Prediction

Correlation tells us that two variables are related, but it does not allow us to predict one from the other or to describe the nature of that relationship. Linear regression goes further—it models the relationship between variables, allowing us to make predictions and to quantify how changes in one variable are associated with changes in another.

In simple linear regression, we model a response variable Y as a linear function of a predictor variable X:

\[y_i = \beta_0 + \beta_1 x_i + \epsilon_i\]

Here \(\beta_0\) is the intercept (the expected value of Y when X equals zero), \(\beta_1\) is the slope (how much Y changes for a one-unit change in X), and \(\epsilon_i\) represents the random error—the part of Y not explained by X.

Figure 23.1: Conceptual diagram of simple linear regression showing the relationship between predictor X and response Y with the linear model equation

23.2 Origins of the Term “Regression”

The term “regression” comes from Francis Galton’s studies of heredity in the 1880s. He observed that tall parents tended to have children who were tall, but not as extremely tall as the parents—children’s heights “regressed” toward the population mean. This phenomenon, now called regression to the mean, is a statistical artifact that appears whenever two variables are imperfectly correlated.

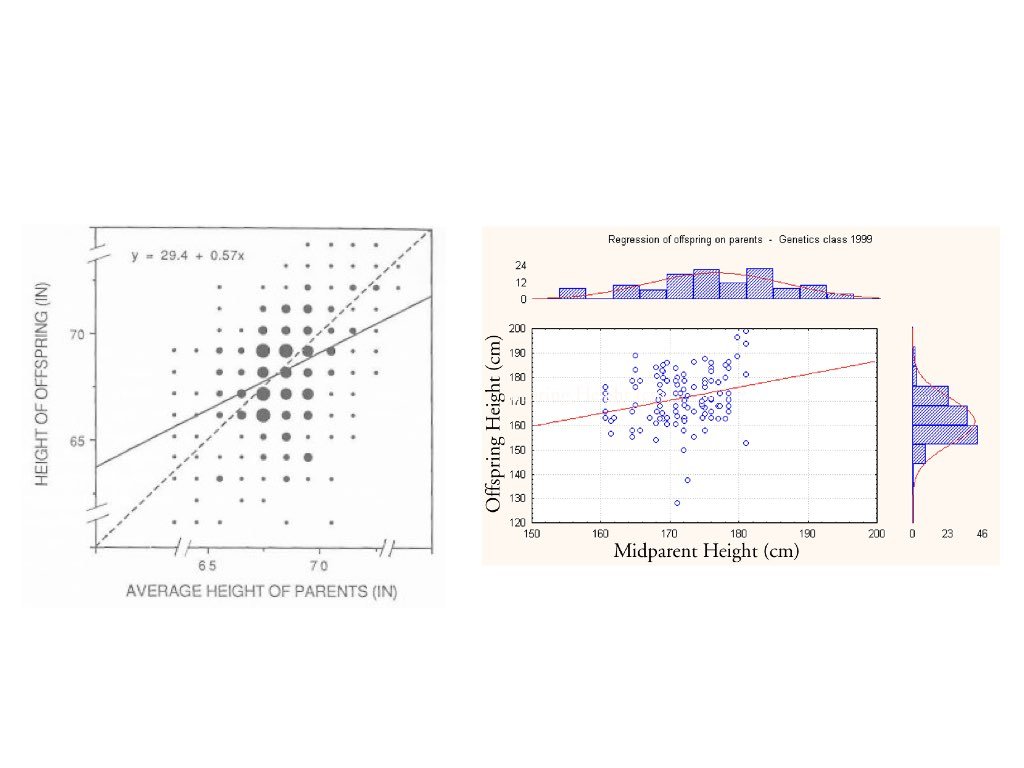

Figure 23.2: Historical illustration of Galton’s regression to the mean, showing how offspring heights regress toward the population mean

23.3 The Regression Fallacy

Understanding regression to the mean is crucial because ignoring it leads to a common error in reasoning called the regression fallacy. This occurs when we attribute regression to the mean to some other cause—typically claiming credit for improvement that was simply statistical regression.

The most famous example is the “Sophomore Slump” in baseball. The player who wins Rookie of the Year typically performs worse in their second season. Sportswriters often blame this on pressure, complacency, or teams “figuring out” the player. But much of this decline is simply regression to the mean.

Consider why: to win Rookie of the Year, a player typically needs exceptional performance—often their personal best. This outstanding season likely involved skill plus some good luck (favorable conditions, timely hits, etc.). In the following season, luck averages out, and performance regresses toward the player’s true ability level.

Code
# Simulating the Sophomore Slump
set.seed(42)
n_players <- 500

# True talent level for each player (varies between players)
true_talent <- rnorm(n_players, mean = 0.265, sd = 0.020)

# Season 1: observed performance = true talent + luck
luck_season1 <- rnorm(n_players, mean = 0, sd = 0.025)
batting_avg_yr1 <- true_talent + luck_season1

# Season 2: observed performance = same true talent + different luck
luck_season2 <- rnorm(n_players, mean = 0, sd = 0.025)
batting_avg_yr2 <- true_talent + luck_season2

# Find the "Rookie of the Year" - best performer in year 1
roy_idx <- which.max(batting_avg_yr1)

# Look at top 10 performers in year 1
top_10 <- order(batting_avg_yr1, decreasing = TRUE)[1:10]

cat("Top 10 performers in Year 1 vs Year 2:\n")
Top 10 performers in Year 1 vs Year 2:
Code
cat("========================================\n")
========================================
Code
for (i in 1:10) {
  idx <- top_10[i]
  change <- batting_avg_yr2[idx] - batting_avg_yr1[idx]
  cat(sprintf("Player %d: Yr1 = %.3f, Yr2 = %.3f, Change = %+.3f\n",
              i, batting_avg_yr1[idx], batting_avg_yr2[idx], change))
}
Player 1: Yr1 = 0.384, Yr2 = 0.291, Change = -0.093
Player 2: Yr1 = 0.366, Yr2 = 0.272, Change = -0.094
Player 3: Yr1 = 0.357, Yr2 = 0.298, Change = -0.059
Player 4: Yr1 = 0.352, Yr2 = 0.240, Change = -0.112
Player 5: Yr1 = 0.349, Yr2 = 0.328, Change = -0.021
Player 6: Yr1 = 0.343, Yr2 = 0.301, Change = -0.042
Player 7: Yr1 = 0.337, Yr2 = 0.299, Change = -0.038
Player 8: Yr1 = 0.334, Yr2 = 0.325, Change = -0.009
Player 9: Yr1 = 0.329, Yr2 = 0.242, Change = -0.087
Player 10: Yr1 = 0.329, Yr2 = 0.283, Change = -0.046
Code
# How many of top 10 declined?
declines <- sum(batting_avg_yr2[top_10] < batting_avg_yr1[top_10])
cat(sprintf("\n%d of top 10 performers showed a decline (the 'slump')\n", declines))

10 of top 10 performers showed a decline (the 'slump')

Notice that nearly all of the top performers declined—not because of anything about being a sophomore, but because extreme initial performance tends to be followed by more average performance.

Code
# Visualize regression to the mean
plot(batting_avg_yr1, batting_avg_yr2,
     pch = 19, col = rgb(0, 0, 0, 0.3),
     xlab = "Year 1 Batting Average",
     ylab = "Year 2 Batting Average",
     main = "Regression to the Mean: The Sophomore Slump",
     xlim = c(0.20, 0.35), ylim = c(0.20, 0.35))

# Add y = x line (what we'd see with no regression)
abline(a = 0, b = 1, col = "gray", lty = 2, lwd = 2)

# Add regression line
reg_line <- lm(batting_avg_yr2 ~ batting_avg_yr1)
abline(reg_line, col = "red", lwd = 2)

# Highlight top performers
points(batting_avg_yr1[top_10], batting_avg_yr2[top_10],
       pch = 19, col = "blue", cex = 1.5)

# Mark the "Rookie of the Year"
points(batting_avg_yr1[roy_idx], batting_avg_yr2[roy_idx],
       pch = 17, col = "red", cex = 2)

legend("topleft",
       legend = c("All players", "Top 10 Year 1", "Best performer",
                  "No regression (y=x)", "Regression line"),
       pch = c(19, 19, 17, NA, NA),
       lty = c(NA, NA, NA, 2, 1),
       col = c(rgb(0,0,0,0.3), "blue", "red", "gray", "red"),
       lwd = c(NA, NA, NA, 2, 2))

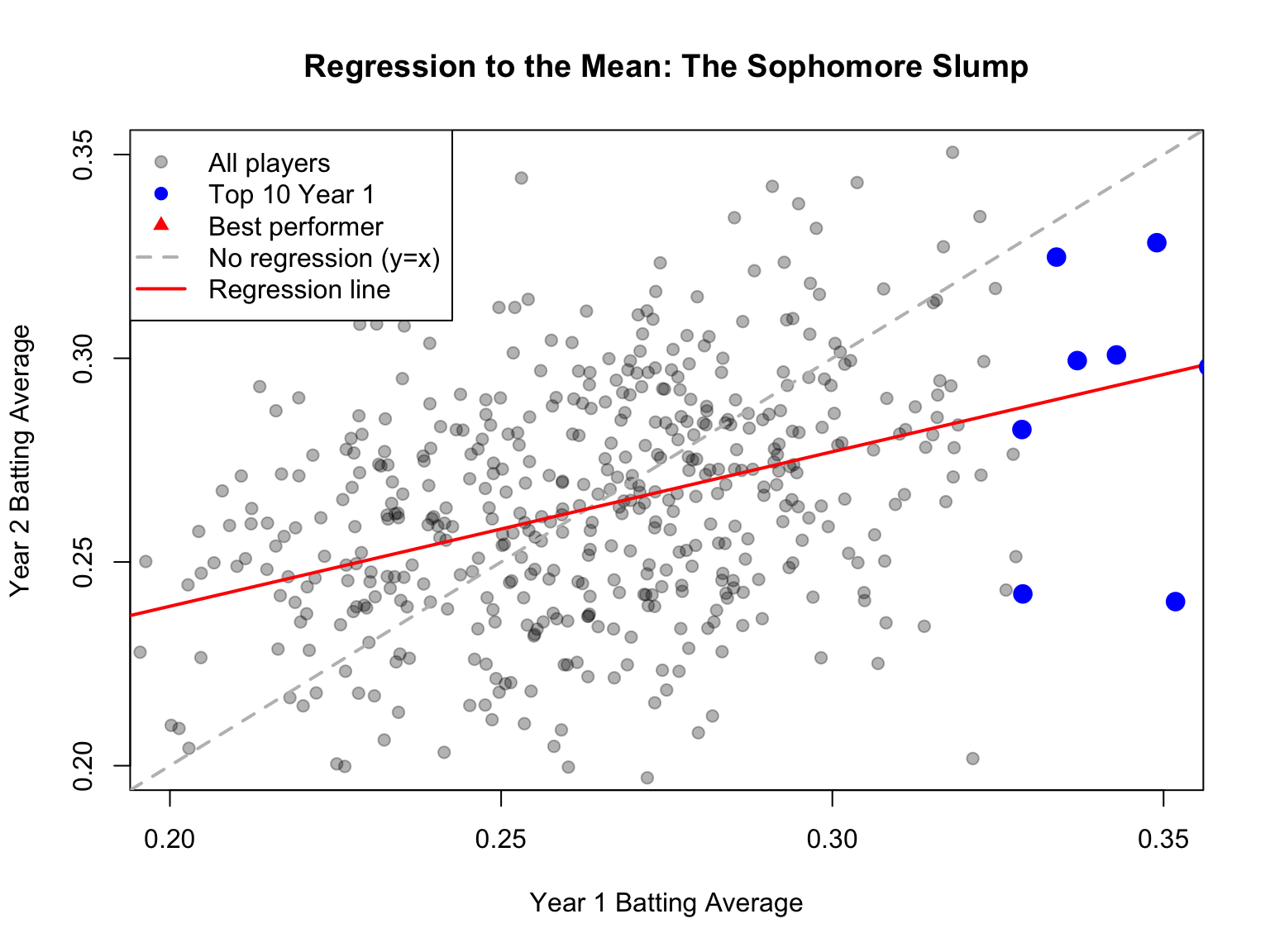

Figure 23.3: Visualization of regression to the mean in baseball batting averages, showing how top Year 1 performers tend to decline in Year 2, not due to a sophomore slump but statistical regression

The dashed line shows what we would see if Year 1 perfectly predicted Year 2 (no regression to the mean). The red regression line shows reality—it’s flatter, meaning extreme Year 1 performers tend to move toward the center in Year 2.

Avoiding the Regression Fallacy

The regression fallacy appears in many contexts:

  • Medical treatments: Patients seek treatment when symptoms are worst; subsequent improvement may be regression, not treatment effect
  • Performance management: Workers reprimanded for poor performance often improve; those praised for good performance often decline—both may be regression
  • Educational interventions: Students identified as struggling (tested at their worst) often improve regardless of intervention

When evaluating any intervention applied to extreme cases, always consider whether observed changes might simply be regression to the mean.

23.4 Fitting the Model: Ordinary Least Squares

The most common method for fitting a regression line is ordinary least squares (OLS). OLS finds the line that minimizes the sum of squared residuals—the squared vertical distances between observed points and the fitted line.

Figure 23.4: Illustration of ordinary least squares showing how the regression line minimizes the sum of squared vertical distances (residuals) from points to the line

The OLS estimates for the slope and intercept are:

\[\hat{\beta}_1 = \frac{\sum(x_i - \bar{x})(y_i - \bar{y})}{\sum(x_i - \bar{x})^2} = r \frac{s_y}{s_x}\]

\[\hat{\beta}_0 = \bar{y} - \hat{\beta}_1 \bar{x}\]

Notice that the slope equals the correlation coefficient times the ratio of standard deviations. This makes clear the connection between correlation and regression.

23.5 Linear Regression in R

Code
# Example: zebrafish size data
set.seed(42)
n <- 100
length_cm <- runif(n, 0.5, 3.5)
weight_mg <- 15 * length_cm^2 + rnorm(n, sd = 10)

# Fit the model
fish_lm <- lm(weight_mg ~ length_cm)
summary(fish_lm)

Call:
lm(formula = weight_mg ~ length_cm)

Residuals:
    Min      1Q  Median      3Q     Max
-39.277  -9.033  -0.432   9.998  29.934

Coefficients:
            Estimate Std. Error t value Pr(>|t|)
(Intercept)  -51.429      3.579  -14.37   <2e-16 ***
length_cm     61.660      1.583   38.95   <2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Residual standard error: 14.27 on 98 degrees of freedom
Multiple R-squared:  0.9393,    Adjusted R-squared:  0.9387
F-statistic:  1517 on 1 and 98 DF,  p-value: < 2.2e-16

The output shows the estimated coefficients with their standard errors, t-statistics, and p-values. The Multiple R-squared indicates how much of the variance in Y is explained by X.

Code
# Visualize the fit
plot(length_cm, weight_mg, pch = 19, col = "blue",
     xlab = "Length (cm)", ylab = "Weight (mg)",
     main = "Linear Regression: Weight vs Length")
abline(fish_lm, col = "red", lwd = 2)

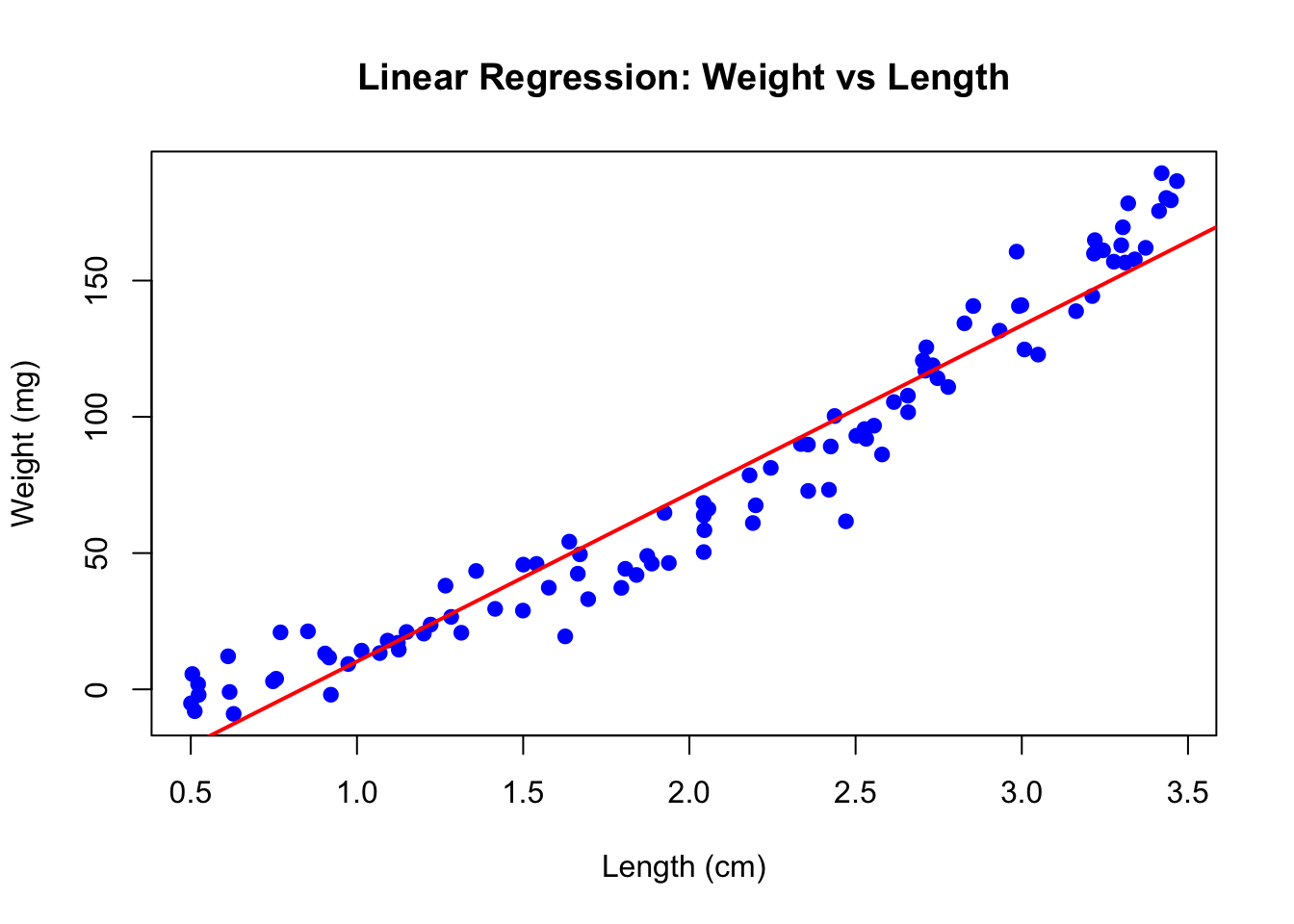

Figure 23.5: Linear regression of zebrafish weight versus length showing fitted regression line

23.6 Interpretation of Coefficients

The intercept \(\hat{\beta}_0\) is the predicted value of Y when X equals zero. This may or may not be meaningful depending on whether X = 0 makes sense in your context.

The slope \(\hat{\beta}_1\) is the predicted change in Y for a one-unit increase in X. If the slope is 15, then each additional unit of X is associated with 15 more units of Y on average.

23.7 Hypothesis Testing in Regression

The hypothesis test for the slope asks whether there is evidence of a relationship between X and Y:

\[H_0: \beta_1 = 0 \quad \text{(no relationship)}\] \[H_A: \beta_1 \neq 0 \quad \text{(relationship exists)}\]

The test uses a t-statistic, comparing the estimated slope to its standard error. The p-value indicates the probability of observing a slope this far from zero if the true slope were zero.

Figure 23.6: Hypothesis testing in regression showing the t-distribution for testing whether the slope coefficient differs from zero

23.8 R-Squared: Measuring Model Fit

R-squared (\(R^2\)) measures the proportion of variance in Y explained by the model:

\[R^2 = 1 - \frac{SS_{error}}{SS_{total}} = \frac{SS_{model}}{SS_{total}}\]

In simple linear regression, \(R^2\) equals the square of the correlation coefficient. An \(R^2\) of 0.7 means the model explains 70% of the variance in Y; the remaining 30% is unexplained.

Be cautious with \(R^2\)—it always increases when you add predictors, even useless ones. Adjusted \(R^2\) penalizes for model complexity.

23.9 Making Predictions

Once you have a fitted model, you can predict Y for new values of X:

Code
# Predict weight for new lengths
new_lengths <- data.frame(length_cm = c(1.0, 2.0, 3.0))
predict(fish_lm, newdata = new_lengths, interval = "confidence")
        fit        lwr       upr
1  10.23108   5.828292  14.63387
2  71.89135  69.050838  74.73186
3 133.55162 129.491293 137.61194

The confidence interval indicates uncertainty about the mean Y at each X value. A prediction interval (using interval = "prediction") would be wider, accounting for individual variability around that mean.

23.10 Tidyverse Approach: The broom Package

The summary() output from lm() is informative but awkward to work with programmatically. The broom package provides three functions that convert model output into tidy tibbles, making it easy to use regression results in tidyverse workflows.

tidy(): Extract Coefficient Statistics

The tidy() function extracts coefficient estimates, standard errors, test statistics, and p-values as a tibble:

Code
library(broom)

# Standard summary output (not tidy)
summary(fish_lm)$coefficients
             Estimate Std. Error   t value     Pr(>|t|)
(Intercept) -51.42918   3.578653 -14.37110 7.241174e-26
length_cm    61.66027   1.582874  38.95464 1.914443e-61
Code
# Tidy output - much easier to work with
tidy(fish_lm)
# A tibble: 2 × 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)    -51.4      3.58     -14.4 7.24e-26
2 length_cm       61.7      1.58      39.0 1.91e-61

The tidy format makes it easy to filter, arrange, or visualize coefficients:

Code
# Extract just significant coefficients
tidy(fish_lm) |>
  filter(p.value < 0.05)
# A tibble: 2 × 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)    -51.4      3.58     -14.4 7.24e-26
2 length_cm       61.7      1.58      39.0 1.91e-61
Code
# Add confidence intervals
tidy(fish_lm, conf.int = TRUE, conf.level = 0.95)
# A tibble: 2 × 7
  term        estimate std.error statistic  p.value conf.low conf.high
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>    <dbl>     <dbl>
1 (Intercept)    -51.4      3.58     -14.4 7.24e-26    -58.5     -44.3
2 length_cm       61.7      1.58      39.0 1.91e-61     58.5      64.8

glance(): Model-Level Statistics

The glance() function extracts model-level summaries—R-squared, AIC, BIC, and other fit statistics—as a single-row tibble:

Code
glance(fish_lm)
# A tibble: 1 × 12
  r.squared adj.r.squared sigma statistic  p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>    <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.939         0.939  14.3     1517. 1.91e-61     1  -407.  819.  827.
# ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

This is particularly useful when comparing multiple models:

Code
# Compare models with different predictors
fish_lm_simple <- lm(weight_mg ~ length_cm)
fish_lm_quad <- lm(weight_mg ~ length_cm + I(length_cm^2))

# Combine model summaries
bind_rows(
  glance(fish_lm_simple) |> mutate(model = "linear"),
  glance(fish_lm_quad) |> mutate(model = "quadratic")
) |>
  select(model, r.squared, adj.r.squared, AIC, BIC)
# A tibble: 2 × 5
  model     r.squared adj.r.squared   AIC   BIC
  <chr>         <dbl>         <dbl> <dbl> <dbl>
1 linear        0.939         0.939  819.  827.
2 quadratic     0.974         0.974  735.  745.

augment(): Add Fitted Values and Residuals

The augment() function adds fitted values, residuals, and diagnostic measures to your original data:

Code
# Add model diagnostics to the data
fish_augmented <- augment(fish_lm)
head(fish_augmented)
# A tibble: 6 × 8
  weight_mg length_cm .fitted .resid   .hat .sigma .cooksd .std.resid
      <dbl>     <dbl>   <dbl>  <dbl>  <dbl>  <dbl>   <dbl>      <dbl>
1     161.       3.24   149.   12.5  0.0269   14.3 0.0109       0.888
2     157.       3.31   153.    3.88 0.0289   14.3 0.00113      0.276
3      43.4      1.36    32.3  11.1  0.0163   14.3 0.00510      0.785
4     141.       2.99   133.    7.63 0.0204   14.3 0.00304      0.541
5      89.1      2.43    98.1  -8.99 0.0115   14.3 0.00234     -0.634
6      66.3      2.06    75.4  -9.17 0.0100   14.3 0.00211     -0.646

The augmented data includes:

  • .fitted: Predicted values
  • .resid: Residuals
  • .hat: Leverage values
  • .cooksd: Cook’s distance (influence measure)
  • .std.resid: Standardized residuals

This makes ggplot-based diagnostic plots straightforward:

Code
# Diagnostic plots with ggplot
library(patchwork)

p1 <- ggplot(fish_augmented, aes(.fitted, .resid)) +
  geom_point(alpha = 0.6) +
  geom_hline(yintercept = 0, linetype = "dashed", color = "red") +
  geom_smooth(se = FALSE, color = "blue") +
  labs(x = "Fitted values", y = "Residuals",
       title = "Residuals vs Fitted")

p2 <- ggplot(fish_augmented, aes(sample = .std.resid)) +
  stat_qq() +
  stat_qq_line(color = "red") +
  labs(x = "Theoretical quantiles", y = "Standardized residuals",
       title = "Q-Q Plot")

p1 + p2

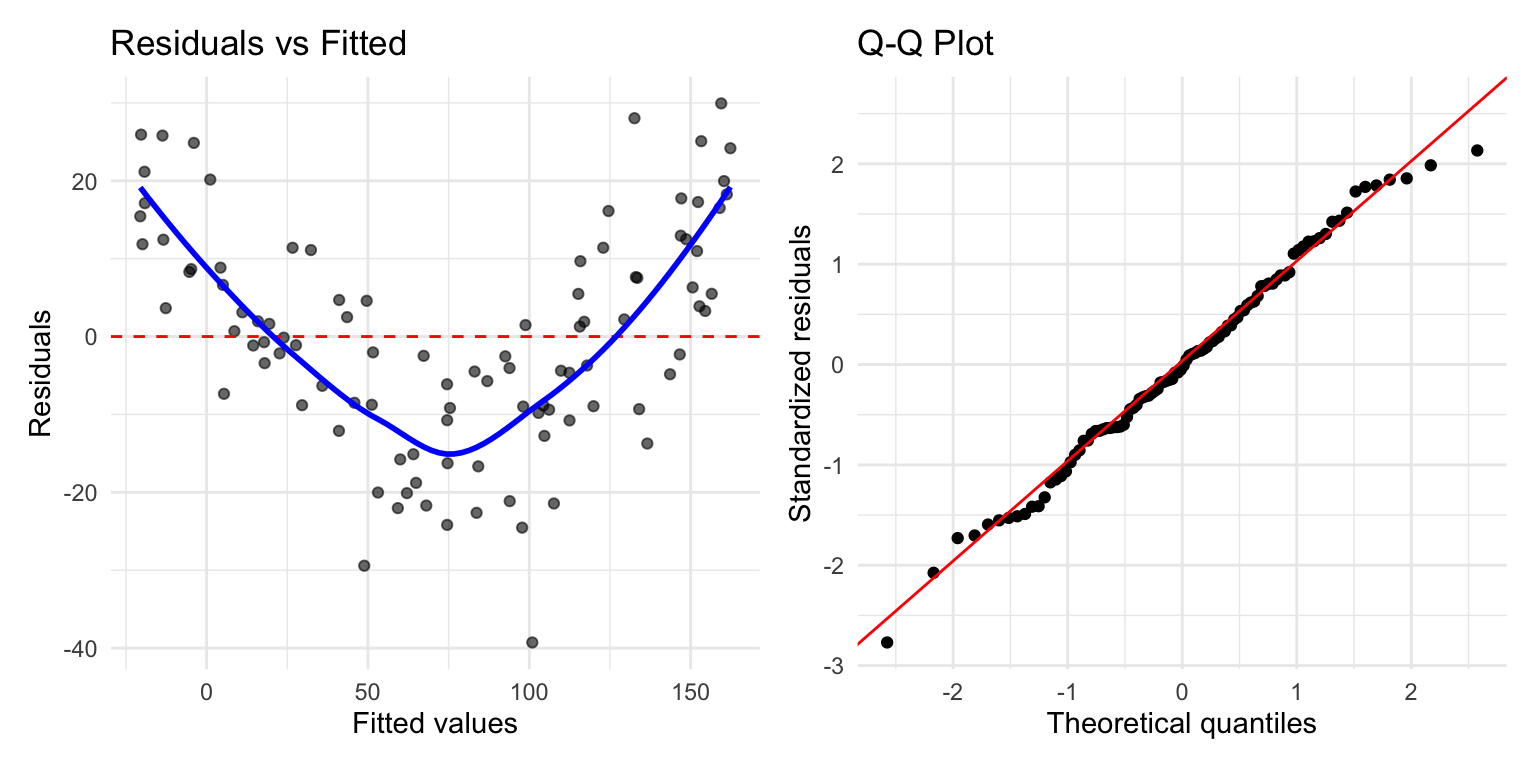

Figure 23.7: Residual diagnostic plots created using augmented data from the broom package

You can also use augment() to add predictions for new data:

Code
# Predict for new lengths
new_fish <- tibble(length_cm = c(1.0, 2.0, 3.0, 4.0))
augment(fish_lm, newdata = new_fish, interval = "confidence")
# A tibble: 4 × 4
  length_cm .fitted .lower .upper
      <dbl>   <dbl>  <dbl>  <dbl>
1         1    10.2   5.83   14.6
2         2    71.9  69.1    74.7
3         3   134.  129.    138.
4         4   195.  189.    202.
Why Use broom?

The broom package integrates regression analysis into tidyverse workflows:

  • Reproducibility: Tidy output is easier to save, share, and version control
  • Visualization: Augmented data works directly with ggplot2
  • Iteration: Compare many models using map() and bind_rows()
  • Consistency: Same functions work for lm(), glm(), t.test(), and 100+ model types
Code
# Example: Fit models to multiple groups
mtcars |>
  group_by(cyl) |>
  group_modify(~ tidy(lm(mpg ~ wt, data = .x)))

23.11 Model Assumptions

Linear regression assumptions include:

  1. Linearity: The relationship between X and Y is linear
  2. Independence: Observations are independent of each other
  3. Normality: Residuals are normally distributed
  4. Homoscedasticity: Residuals have constant variance across X

These assumptions should be checked through residual analysis.

23.12 Residual Analysis

Residuals are the differences between observed and fitted values: \(e_i = y_i - \hat{y}_i\). Examining residuals reveals whether model assumptions are satisfied.

Code
# Residual diagnostic plots
par(mfrow = c(2, 2))
plot(fish_lm)

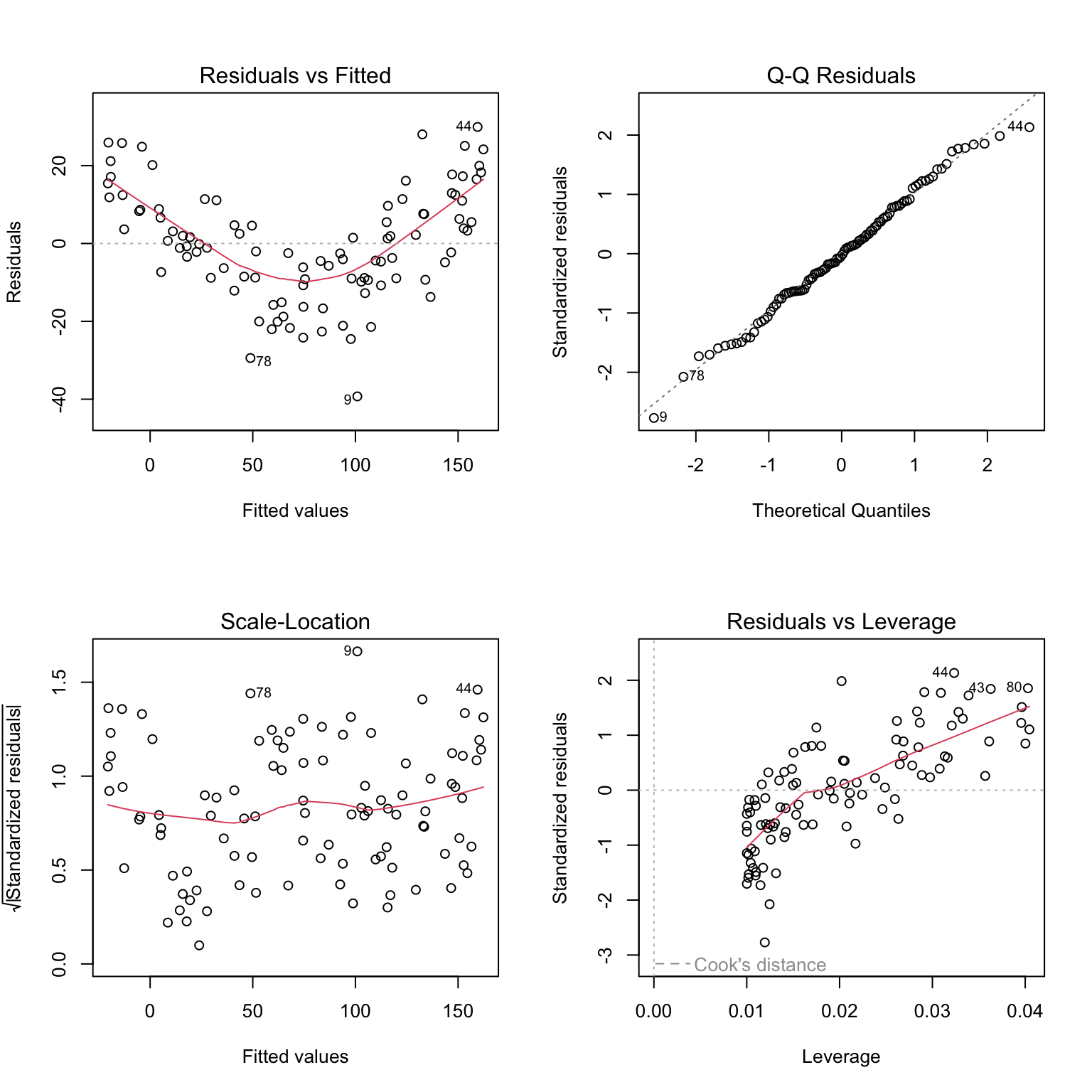

Figure 23.8: Standard residual diagnostic plots for linear regression including residuals vs fitted, Q-Q plot, scale-location, and residuals vs leverage

Key diagnostic plots:

  1. Residuals vs Fitted: Should show random scatter around zero. Patterns suggest non-linearity or heteroscedasticity.

  2. Q-Q Plot: Residuals should fall along the diagonal line if normally distributed. Deviations at the tails indicate non-normality.

  3. Scale-Location: Should show constant spread. A funnel shape indicates heteroscedasticity.

  4. Residuals vs Leverage: Identifies influential points. Points with high leverage and large residuals may unduly influence the fit.

Code
# Example of problematic residuals
set.seed(123)
x_prob <- seq(1, 10, length.out = 50)
y_prob <- x_prob^2 + rnorm(50, sd = 5)  # Quadratic relationship

lm_prob <- lm(y_prob ~ x_prob)

par(mfrow = c(1, 2))
plot(x_prob, y_prob, pch = 19, main = "Data with Non-linear Pattern")
abline(lm_prob, col = "red", lwd = 2)

plot(fitted(lm_prob), residuals(lm_prob), pch = 19,
     xlab = "Fitted values", ylab = "Residuals",
     main = "Residuals Show Clear Pattern")
abline(h = 0, col = "red", lty = 2)

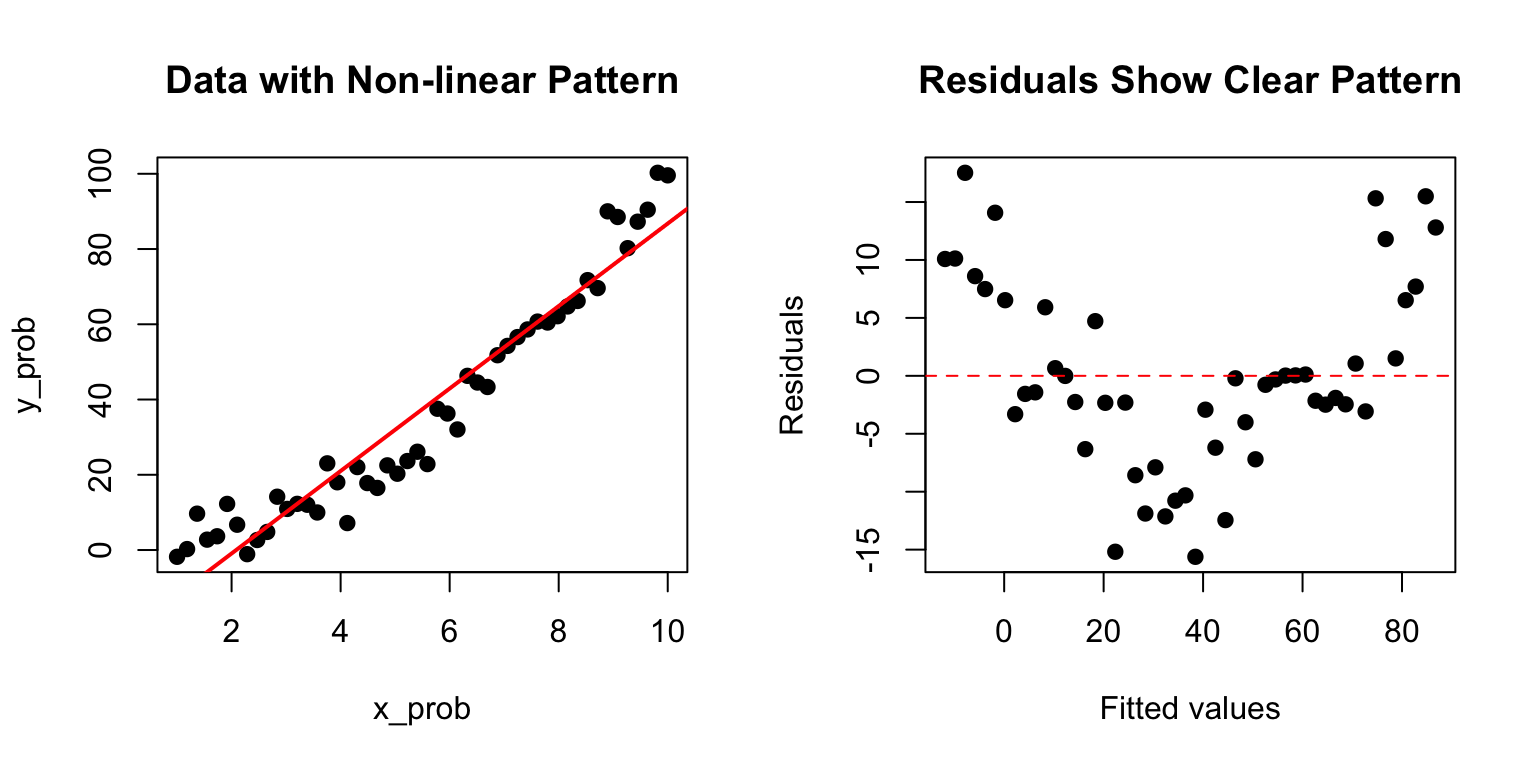

Figure 23.9: Example of problematic residuals from fitting a linear model to nonlinear data, showing curved pattern in residual plot

The curved pattern in the residuals reveals that a linear model is inappropriate—the true relationship is non-linear.

23.13 Model I vs Model II Regression

Standard OLS regression (Model I) assumes X is measured without error and minimizes vertical distances to the line. This is appropriate when:

  • X is fixed by the experimenter (controlled variable)
  • X is measured with negligible error compared to Y
  • The goal is prediction of Y from X

When both variables are measured with error (common in observational studies), Model II regression may be more appropriate. Model II methods include:

  • Major Axis (MA) regression: Minimizes perpendicular distances to the line
  • Reduced Major Axis (RMA): Often preferred when both variables have similar measurement error
Code
# Model I slope estimate
slope_model1 <- coef(fish_lm)[2]

# Reduced Major Axis slope estimate (ratio of standard deviations)
slope_rma <- sd(weight_mg) / sd(length_cm) * sign(cor(length_cm, weight_mg))

cat("Model I (OLS) slope:", round(slope_model1, 3), "\n")
Model I (OLS) slope: 61.66
Code
cat("Model II (RMA) slope:", round(slope_rma, 3), "\n")
Model II (RMA) slope: 63.62
When to Use Model II Regression

Use Model II regression when: - Both X and Y are random variables measured with error - You want to describe the relationship rather than predict Y from X - You need to compare slopes across groups (e.g., allometric scaling)

The lmodel2 package in R provides Model II regression methods.

23.14 Extrapolation Warning

Regression models should only be used to make predictions within the range of observed X values. Extrapolation—predicting beyond this range—is risky because the linear relationship may not hold.

Code
# Danger of extrapolation
plot(length_cm, weight_mg, pch = 19, col = "blue",
     xlim = c(0, 6), ylim = c(-50, 600),
     xlab = "Length (cm)", ylab = "Weight (mg)",
     main = "Extrapolation Risk")
abline(fish_lm, col = "red", lwd = 2)
abline(v = c(min(length_cm), max(length_cm)), col = "gray", lty = 2)

# Mark extrapolation zone
rect(max(length_cm), -50, 6, 600, col = rgb(1, 0, 0, 0.1), border = NA)
text(5, 100, "Extrapolation\nzone", col = "red")

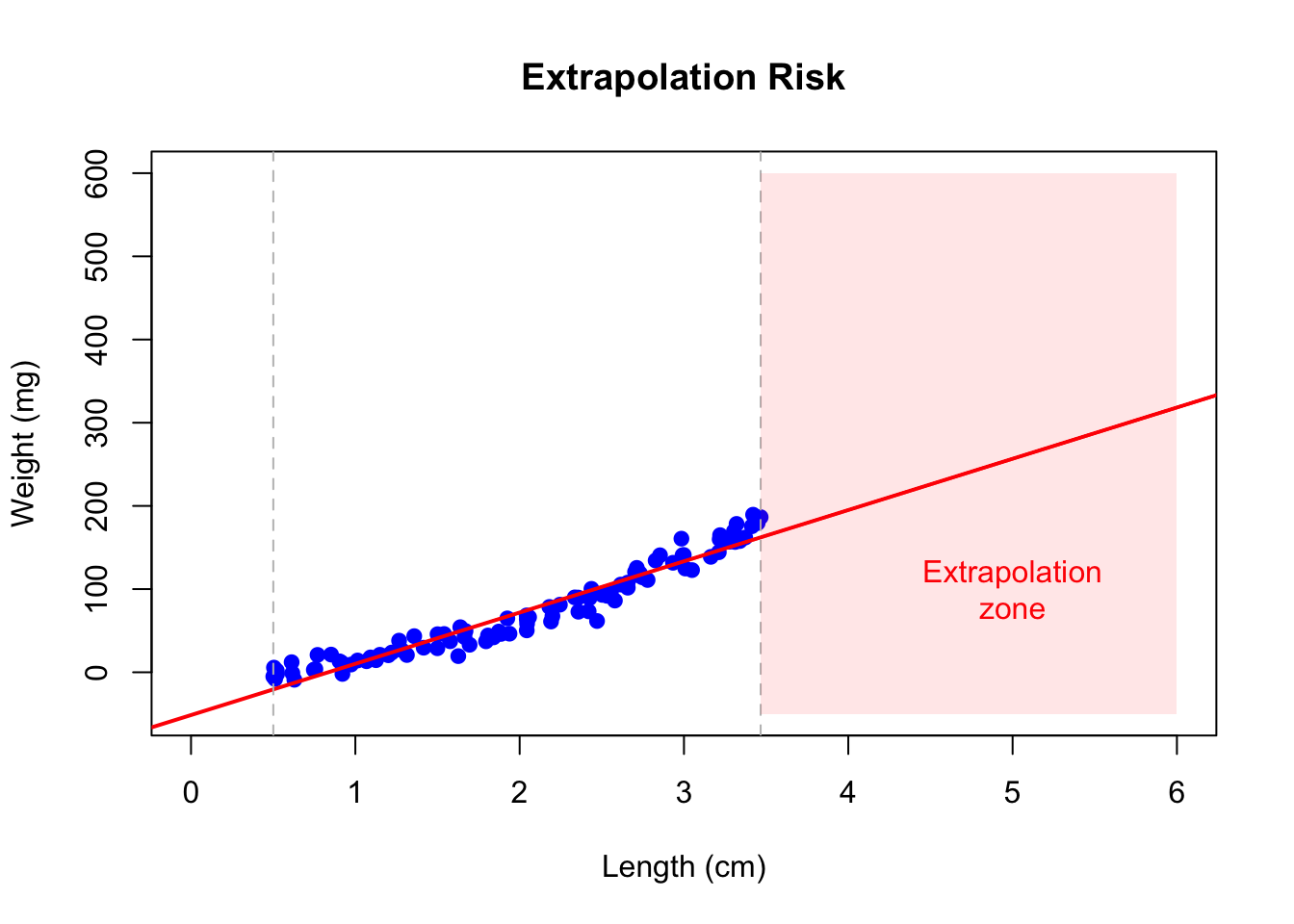

Figure 23.10: Illustration of extrapolation risk showing how predictions beyond the observed data range (shaded zone) may be unreliable

23.15 Choosing Your Curve-Fitting Method

As you continue through this book, you will encounter many approaches to modeling relationships in data beyond simple linear regression. Figure 23.11 offers a tongue-in-cheek guide to the different “messages” sent by various curve-fitting choices. While humorous, it makes an important point: the method you choose communicates something about your analysis. A simple linear fit says “I believe there’s a basic linear relationship.” A polynomial fit says “I want a curved line.” LOESS says “I’m letting the data speak for itself.” And confidence intervals say “I’m honestly quantifying my uncertainty.” As you learn more sophisticated methods, keep in mind that simpler approaches are often preferable when they adequately describe the data.

Figure 23.11: A humorous guide to curve-fitting methods and the messages they send. While satirical, this comic highlights an important truth: your choice of model communicates assumptions about the relationship in your data. Simple, interpretable models are often preferable to complex approaches that overfit.

23.16 Summary

Simple linear regression models the relationship between a predictor and response variable:

  • OLS finds the line minimizing squared residuals
  • The slope indicates how Y changes per unit change in X
  • R-squared measures proportion of variance explained
  • Residual analysis checks model assumptions
  • Model II regression is appropriate when both variables have measurement error
  • Avoid extrapolating beyond the range of observed data

23.17 Practice Exercises

Exercise R.1: Simple Linear Regression
  1. Using a dataset of your choice (or the built-in mtcars), fit a linear model with lm()
  2. Examine the model summary
  3. Create a scatterplot with the regression line
  4. Plot the residuals—do they appear randomly distributed?
Code
# Example with built-in data
data(mtcars)
model <- lm(mpg ~ wt, data = mtcars)
summary(model)

# Regression plot
plot(mpg ~ wt, data = mtcars)
abline(model, col = "red")

# Residual plot
plot(model$fitted.values, model$residuals)
abline(h = 0, col = "red", lty = 2)
Exercise R.2: Interpreting Coefficients

Using your model from Exercise R.1:

  1. What does the intercept represent?
  2. What does the slope represent?
  3. What is the R-squared value and what does it mean?
  4. Is the relationship statistically significant?
Exercise R.3: Model Diagnostics

Check the assumptions of your linear model:

  1. Use plot(model) to generate diagnostic plots
  2. Are the residuals normally distributed? (Q-Q plot)
  3. Is there constant variance? (Residuals vs. Fitted)
  4. Are there influential points? (Cook’s distance)
Exercise R.4: Prediction

Using your fitted model:

  1. Predict the response for a new observation
  2. Calculate the confidence interval for the prediction
  3. What happens when you extrapolate beyond the range of your data?
Code
# Predict for a new value
new_data <- data.frame(wt = 3.5)
predict(model, newdata = new_data, interval = "confidence")

23.18 Additional Resources

  • James et al. (2023) - Excellent introduction to regression in the context of statistical learning
  • Logan (2010) - Detailed coverage of regression with biological applications
