36.1 Introduction to Unsupervised Learning

The machine learning algorithms we’ve discussed so far—regression, classification—are examples of supervised learning. The name comes from the fact that we use known outcomes (labels) in a training set to “supervise” the creation of our prediction algorithm.

Unsupervised learning is fundamentally different: we do not necessarily know the outcomes and instead are interested in discovering hidden structure in the data. Clustering algorithms are the most common unsupervised methods—they use features to group observations into clusters without predefined labels.

When Clustering is Useful

Clustering excels when:

  • You want to discover natural groupings in your data
  • Labels are unavailable or expensive to obtain
  • You’re performing exploratory data analysis
  • You need to segment populations for further study

Examples in biology:

  • Identifying cell types from single-cell RNA-seq data
  • Grouping patients by disease subtype
  • Finding functional modules in protein interaction networks
  • Classifying microbiome communities

Clustering Requires Distance

A first step in any clustering algorithm is defining a distance between observations. How we measure similarity fundamentally affects what clusters we find. We typically use Euclidean distance, but other metrics (Manhattan, correlation-based) are sometimes more appropriate.

36.2 A Motivating Example: Movie Ratings

Let’s construct a clustering example using movie ratings. We’ll identify whether there are natural groupings among popular movies based on how users rate them.

Code
library(dslabs)
data("movielens")

# Select 50 most-rated movies
top <- movielens %>%
  group_by(movieId) %>%
  summarize(n = n(), title = first(title)) %>%
  top_n(50, n) %>%
  pull(movieId)

# Create rating matrix for users with at least 25 ratings
x <- movielens %>%
  filter(movieId %in% top) %>%
  group_by(userId) %>%
  filter(n() >= 25) %>%
  ungroup() %>%
  select(title, userId, rating) %>%
  pivot_wider(names_from = userId, values_from = rating)

row_names <- str_remove(x$title, ": Episode") %>% str_trunc(20)
x <- x[, -1] %>% as.matrix()

# Center by user and movie means
x <- sweep(x, 2, colMeans(x, na.rm = TRUE))
x <- sweep(x, 1, rowMeans(x, na.rm = TRUE))
rownames(x) <- row_names

We now have a matrix of centered ratings. Can we find groups of similar movies based on how users rate them?

Code
d <- dist(x)

36.3 Hierarchical Clustering

Hierarchical clustering builds a tree-like structure (dendrogram) showing nested relationships between observations or clusters.

The Agglomerative Algorithm

The most common approach is agglomerative (bottom-up) clustering:

  1. Start with each observation as its own cluster
  2. Find the two closest clusters and merge them
  3. Repeat until all observations are in a single cluster
  4. The result is a tree showing the sequence of merges
Code
h <- hclust(d)

Visualizing with Dendrograms

A dendrogram displays the hierarchical structure:

Code
rafalib::mypar()
plot(h, cex = 0.65, main = "Hierarchical Clustering of Movies", xlab = "")

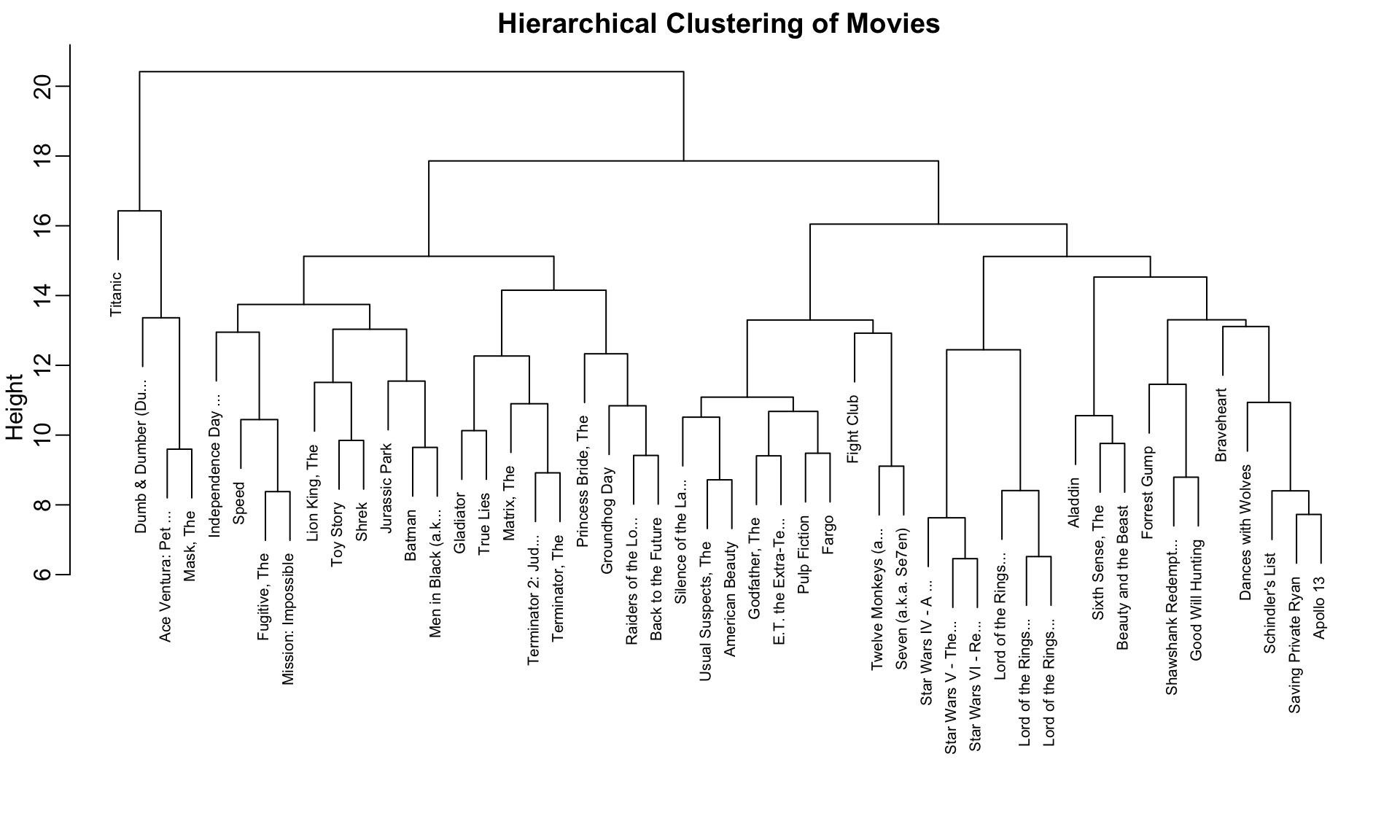

Figure 36.1: Hierarchical clustering dendrogram of movies. Height indicates distance at which clusters merge. Movies that split at lower heights are more similar.

Interpreting Dendrograms

To find the distance between any two movies:

  1. Start at the movies’ leaves
  2. Move up until you reach the node where they first join
  3. The height of that node is the distance between them

For example, the Star Wars movies merge at low heights (they’re similar), while the distance between Raiders of the Lost Ark and Silence of the Lambs is much greater.

Cutting the Tree to Form Clusters

To create discrete clusters, we “cut” the dendrogram either:

  1. At a specified height (minimum distance for cluster membership)
  2. To obtain a specified number of clusters
Code
groups <- cutree(h, k = 10)

Let’s examine some of the resulting clusters:

Code
# Blockbusters cluster
cat("Cluster 4 (Blockbusters):\n")
Cluster 4 (Blockbusters):
Code
names(groups)[groups == 4]
[1] "Fugitive, The"        "Speed"                "Mission: Impossible"
[4] "Independence Day ..."
Code
# Another cluster
cat("\nCluster 9:\n")

Cluster 9:
Code
names(groups)[groups == 9]
[1] "Dumb & Dumber (Du..." "Ace Ventura: Pet ..." "Mask, The"

The clustering reveals meaningful groupings—similar genres and franchises cluster together.

Linkage Methods

Different linkage methods define how cluster-to-cluster distance is computed:

Method Description Characteristics
Complete Maximum distance between any two points Produces compact, spherical clusters
Single Minimum distance between any two points Tends to create elongated chains
Average Mean distance between all pairs Balanced approach
Ward’s Minimizes within-cluster variance Often produces most interpretable clusters
Code
# Create sample data for comparison
set.seed(123)
sample_data <- data.frame(
  x = c(rnorm(20, 0, 1), rnorm(20, 4, 1), rnorm(20, 2, 3)),
  y = c(rnorm(20, 0, 1), rnorm(20, 4, 1), rnorm(20, 8, 1))
)
dist_matrix <- dist(sample_data)

par(mfrow = c(2, 2))
plot(hclust(dist_matrix, method = "single"), main = "Single Linkage", xlab = "")
plot(hclust(dist_matrix, method = "complete"), main = "Complete Linkage", xlab = "")
plot(hclust(dist_matrix, method = "average"), main = "Average Linkage", xlab = "")
plot(hclust(dist_matrix, method = "ward.D2"), main = "Ward's Method", xlab = "")

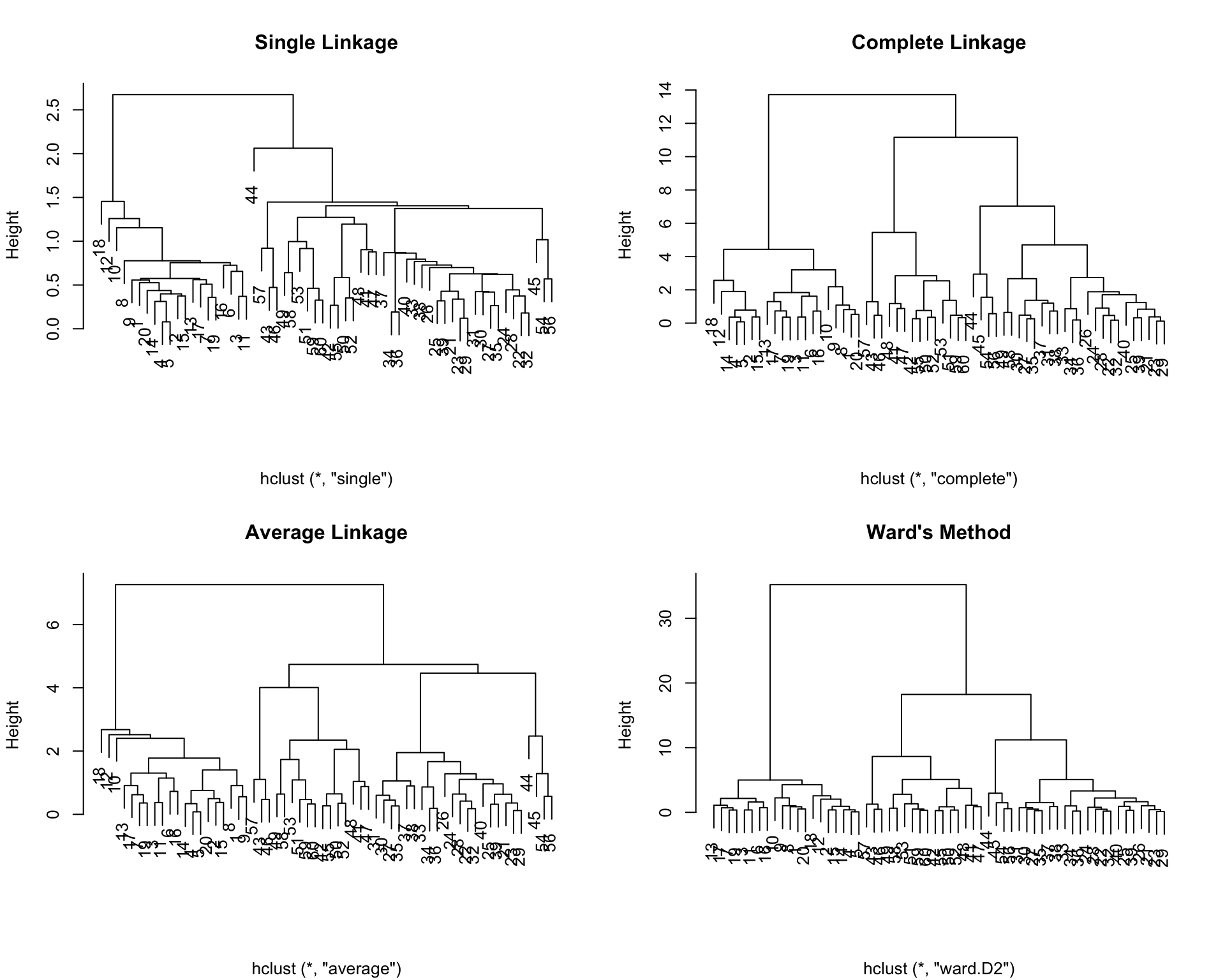

Figure 36.2: Comparison of different linkage methods on the same data. Each method produces different cluster structures.
Choosing a Linkage Method
  • Ward’s method often produces the most interpretable clusters and is a good default
  • Complete linkage is useful when you want compact clusters
  • Single linkage can detect elongated structures but is sensitive to noise
  • Average linkage is a compromise between single and complete

Mathematical Properties

Cophenetic correlation measures how well the dendrogram preserves original distances:

Code
# Cophenetic correlation for Ward's method
hc_ward <- hclust(dist_matrix, method = "ward.D2")
cophenetic_dist <- cophenetic(hc_ward)
cor(dist_matrix, cophenetic_dist)
[1] 0.814684

Higher values (closer to 1) indicate better preservation of the original distance structure.

36.4 K-Means Clustering

K-means clustering partitions observations into exactly \(K\) groups by minimizing within-cluster variance. Unlike hierarchical clustering, you must specify \(K\) in advance.

The K-Means Algorithm

  1. Initialize: Randomly select \(K\) cluster centers
  2. Assign: Assign each observation to the nearest center
  3. Update: Recompute centers as the mean of assigned observations
  4. Repeat: Continue until assignments no longer change

The algorithm minimizes the within-cluster sum of squares (WSS): \[ \text{WSS} = \sum_{k=1}^{K} \sum_{x_i \in C_k} ||x_i - \mu_k||^2 \]

where \(\mu_k\) is the centroid of cluster \(k\).

K-Means in R

Code
# K-means requires no missing values
x_0 <- x
x_0[is.na(x_0)] <- 0

# Run k-means with 10 clusters
set.seed(42)
k <- kmeans(x_0, centers = 10, nstart = 25)

# Cluster assignments
groups_km <- k$cluster
table(groups_km)
groups_km
 1  2  3  4  5  6  7  8  9 10
 9  6  3  6  8  1  3  3  3  8

The nstart parameter runs the algorithm multiple times with different random starts, selecting the best result. This is important because k-means can converge to local optima.

Comparing to Hierarchical Clustering

Code
# Compare k-means to hierarchical clustering
table(KMeans = groups_km, Hierarchical = groups)
      Hierarchical
KMeans 1 2 3 4 5 6 7 8 9 10
    1  1 2 0 1 2 1 0 2 0  0
    2  0 0 0 2 3 1 0 0 0  0
    3  0 0 0 0 0 0 0 0 3  0
    4  1 5 0 0 0 0 0 0 0  0
    5  0 1 0 0 0 2 3 2 0  0
    6  0 0 0 0 0 0 0 0 0  1
    7  0 0 3 0 0 0 0 0 0  0
    8  0 0 3 0 0 0 0 0 0  0
    9  0 0 0 1 0 0 0 2 0  0
    10 8 0 0 0 0 0 0 0 0  0

Visualizing K-Means Results

Code
# Demonstrate k-means on 2D data
set.seed(42)
km_example <- kmeans(sample_data, centers = 3, nstart = 25)

plot(sample_data$x, sample_data$y,
     col = km_example$cluster,
     pch = 19, cex = 1.5,
     xlab = "X", ylab = "Y",
     main = "K-Means Clustering (K=3)")
points(km_example$centers, pch = 4, cex = 3, lwd = 3)
legend("topleft", c("Cluster 1", "Cluster 2", "Cluster 3", "Centers"),
       col = c(1, 2, 3, 1), pch = c(19, 19, 19, 4))

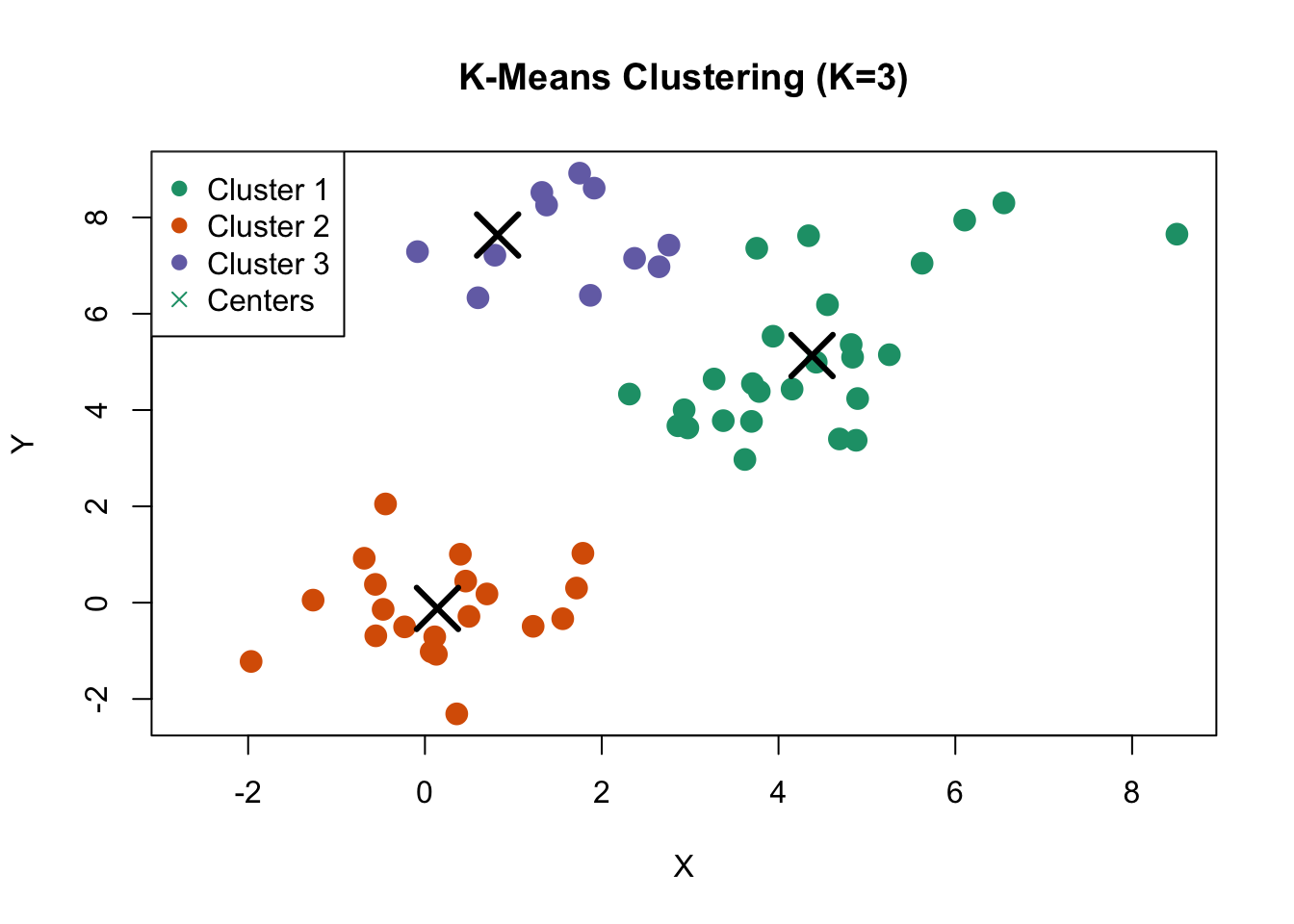

Figure 36.3: K-means clustering on simulated data with three natural clusters

36.5 Choosing the Number of Clusters

A fundamental challenge in clustering is determining the appropriate number of clusters. Several methods can help:

The Elbow Method

Plot within-cluster sum of squares against \(K\) and look for an “elbow” where the rate of decrease slows:

Code
wss <- sapply(1:10, function(k) {
  kmeans(sample_data, centers = k, nstart = 20)$tot.withinss
})

plot(1:10, wss, type = "b", pch = 19,
     xlab = "Number of Clusters (K)",
     ylab = "Total Within-Cluster Sum of Squares",
     main = "Elbow Method")

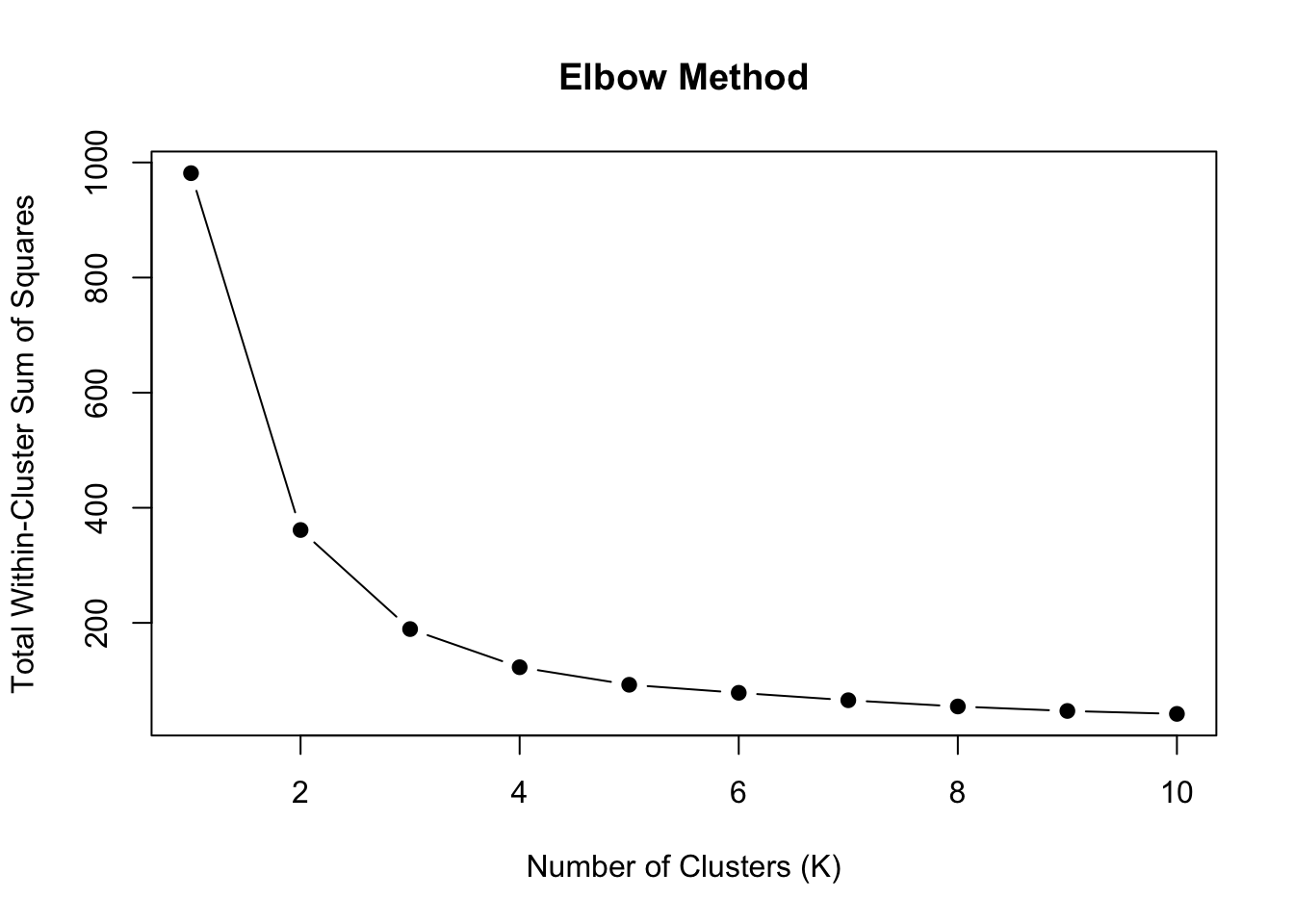

Figure 36.4: Elbow method for selecting number of clusters. Look for the ‘bend’ in the curve where adding more clusters provides diminishing returns.

Silhouette Analysis

The silhouette score measures how similar an observation is to its own cluster compared to other clusters:

\[ s(i) = \frac{b(i) - a(i)}{\max(a(i), b(i))} \]

where: - \(a(i)\) = average distance to other points in the same cluster - \(b(i)\) = average distance to points in the nearest other cluster

Values range from -1 to 1: - Close to 1: well-clustered - Close to 0: on the boundary - Negative: possibly misclassified

Code
library(cluster)

# Calculate silhouette scores for different K
sil_width <- sapply(2:10, function(k) {
  km <- kmeans(sample_data, centers = k, nstart = 20)
  ss <- silhouette(km$cluster, dist(sample_data))
  mean(ss[, "sil_width"])
})

par(mfrow = c(1, 2))
plot(2:10, sil_width, type = "b", pch = 19,
     xlab = "Number of Clusters",
     ylab = "Average Silhouette Width",
     main = "Silhouette Method")

# Detailed silhouette plot for K=3
km_3 <- kmeans(sample_data, centers = 3, nstart = 20)
sil_3 <- silhouette(km_3$cluster, dist(sample_data))
plot(sil_3, col = 1:3, main = "Silhouette Plot (K=3)")

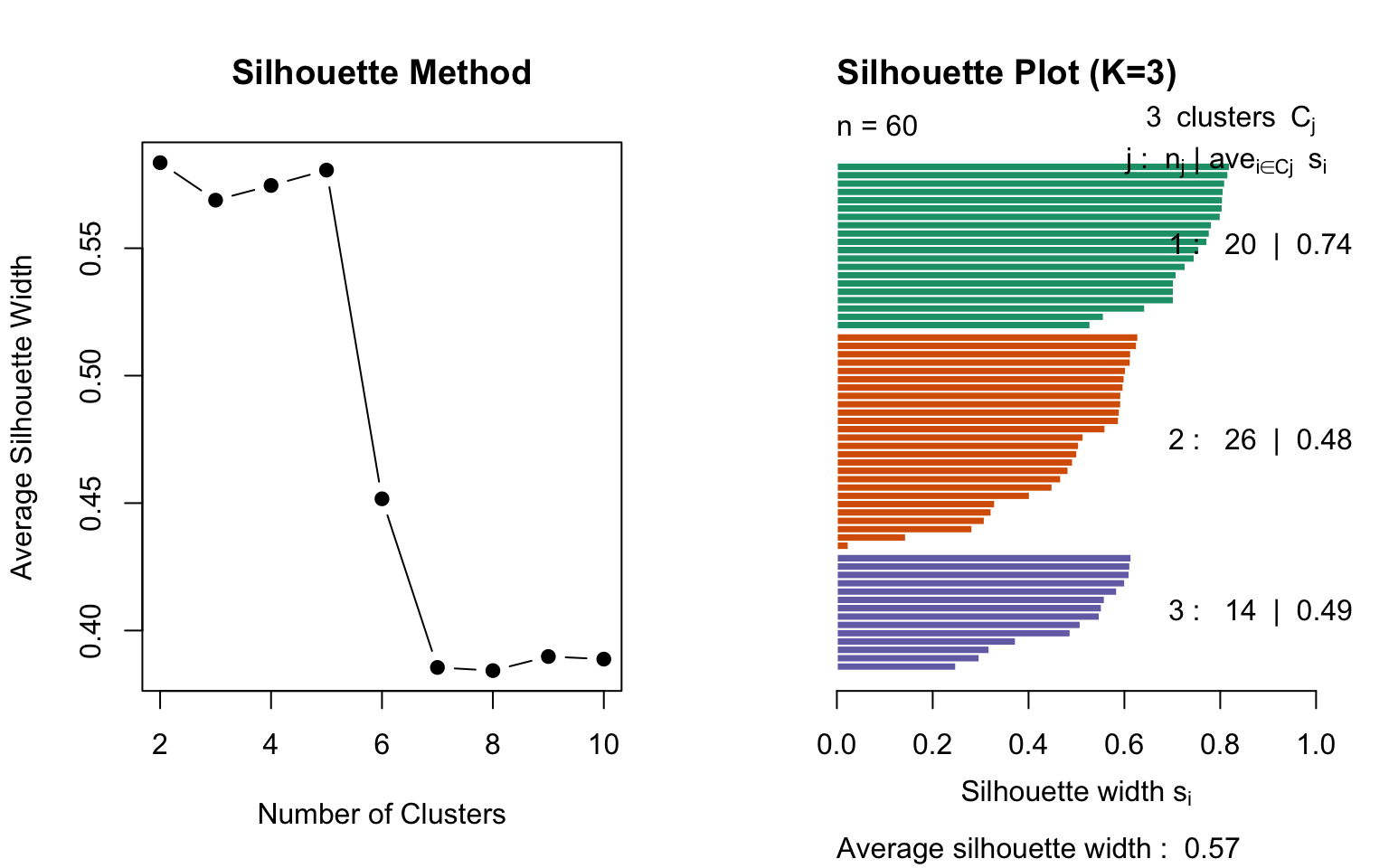

Figure 36.5: Silhouette analysis for different numbers of clusters. Higher average silhouette width indicates better-defined clusters.

Gap Statistic

The gap statistic compares the within-cluster dispersion to that expected under a null reference distribution:

Code
library(cluster)
gap_stat <- clusGap(sample_data, FUN = kmeans, nstart = 25, K.max = 10, B = 50)
plot(gap_stat, main = "Gap Statistic")

36.6 Heatmaps

Heatmaps are powerful visualization tools that combine clustering with color-coded data display. They’re particularly useful for high-dimensional data like gene expression matrices.

Basic Heatmap Construction

The idea:

  1. Plot the data matrix as an image (colors represent values)
  2. Cluster rows (observations) and reorder by similarity
  3. Cluster columns (features) and reorder by similarity
  4. Display dendrograms showing the hierarchical structure

Heatmaps in R

Code
data("tissue_gene_expression")

# Center the data
x_tissue <- sweep(tissue_gene_expression$x, 2,
                   colMeans(tissue_gene_expression$x))

# Basic heatmap (subsample for visibility)
set.seed(42)
gene_sample <- sample(1:ncol(x_tissue), 50)
heatmap(x_tissue[, gene_sample],
        col = brewer.pal(11, "RdBu"),
        margins = c(8, 8),
        cexRow = 0.7,
        main = "Tissue Gene Expression")

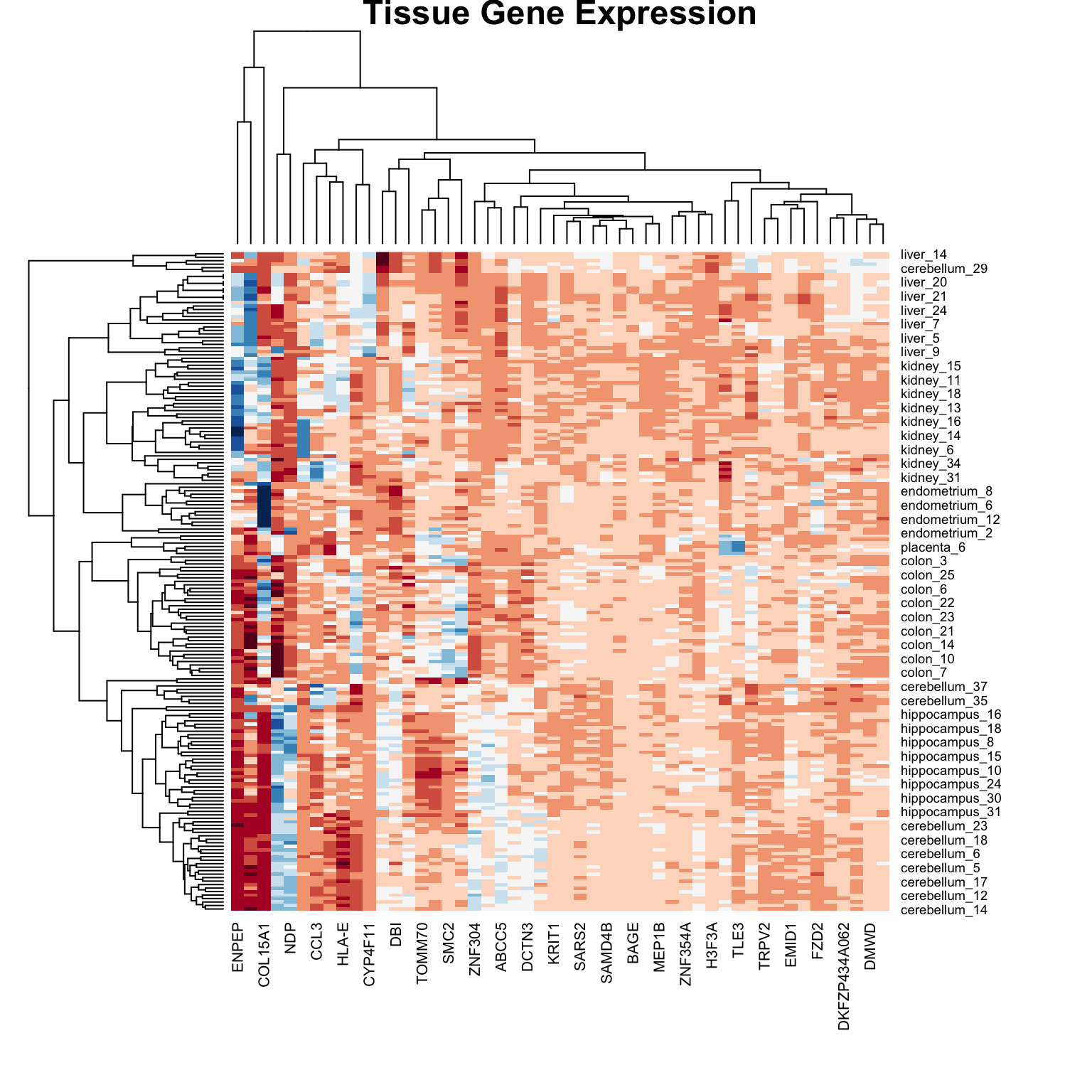

Figure 36.6: Heatmap of tissue gene expression data with hierarchical clustering on both rows and columns

Customizing Heatmaps with Color Bars

Adding color bars shows group membership:

Code
# Color palette for tissues
tissue_colors <- brewer.pal(7, "Set2")[as.numeric(tissue_gene_expression$y)]

# Heatmap with row colors
heatmap(x_tissue[, gene_sample],
        col = brewer.pal(11, "RdBu"),
        RowSideColors = tissue_colors,
        margins = c(8, 10),
        cexRow = 0.7,
        main = "Tissue Gene Expression")

# Add legend
legend("topright", legend = levels(tissue_gene_expression$y),
       fill = brewer.pal(7, "Set2"), cex = 0.7, bty = "n")
Figure 36.7: Heatmap with color sidebar indicating tissue type. Hierarchical clustering reveals that samples group by tissue.

Filtering Features for Better Visualization

Not all features contribute meaningful information to clustering. Filtering to high-variance features often improves visualization:

Code
library(matrixStats)

# Select 50 most variable genes
sds <- colSds(x_tissue, na.rm = TRUE)
top_genes <- order(sds, decreasing = TRUE)[1:50]

heatmap(x_tissue[, top_genes],
        col = brewer.pal(11, "RdBu"),
        RowSideColors = tissue_colors,
        margins = c(10, 10),
        cexRow = 0.7, cexCol = 0.6,
        main = "Top 50 Variable Genes")

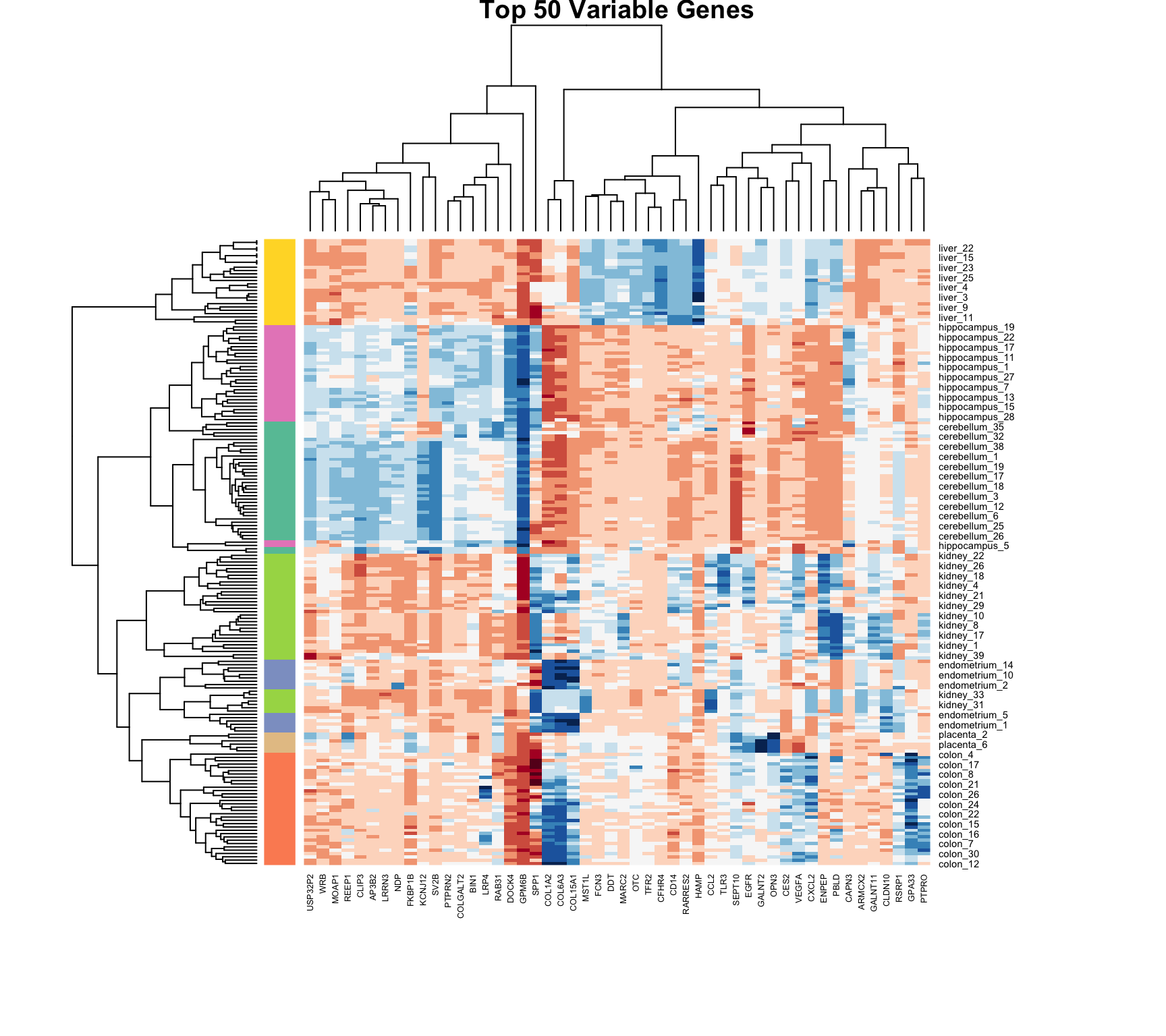

Figure 36.8: Heatmap of the 50 most variable genes. High-variance features often reveal the most interesting biological patterns.

Advanced Heatmaps with pheatmap

The pheatmap package provides more control and better aesthetics:

Code
library(pheatmap)

# Prepare annotation
annotation_row <- data.frame(
  Tissue = tissue_gene_expression$y,
  row.names = rownames(x_tissue)
)

pheatmap(x_tissue[, top_genes],
         color = colorRampPalette(brewer.pal(11, "RdBu"))(100),
         annotation_row = annotation_row,
         show_rownames = FALSE,
         show_colnames = FALSE,
         main = "Tissue Gene Expression Heatmap",
         fontsize = 8)

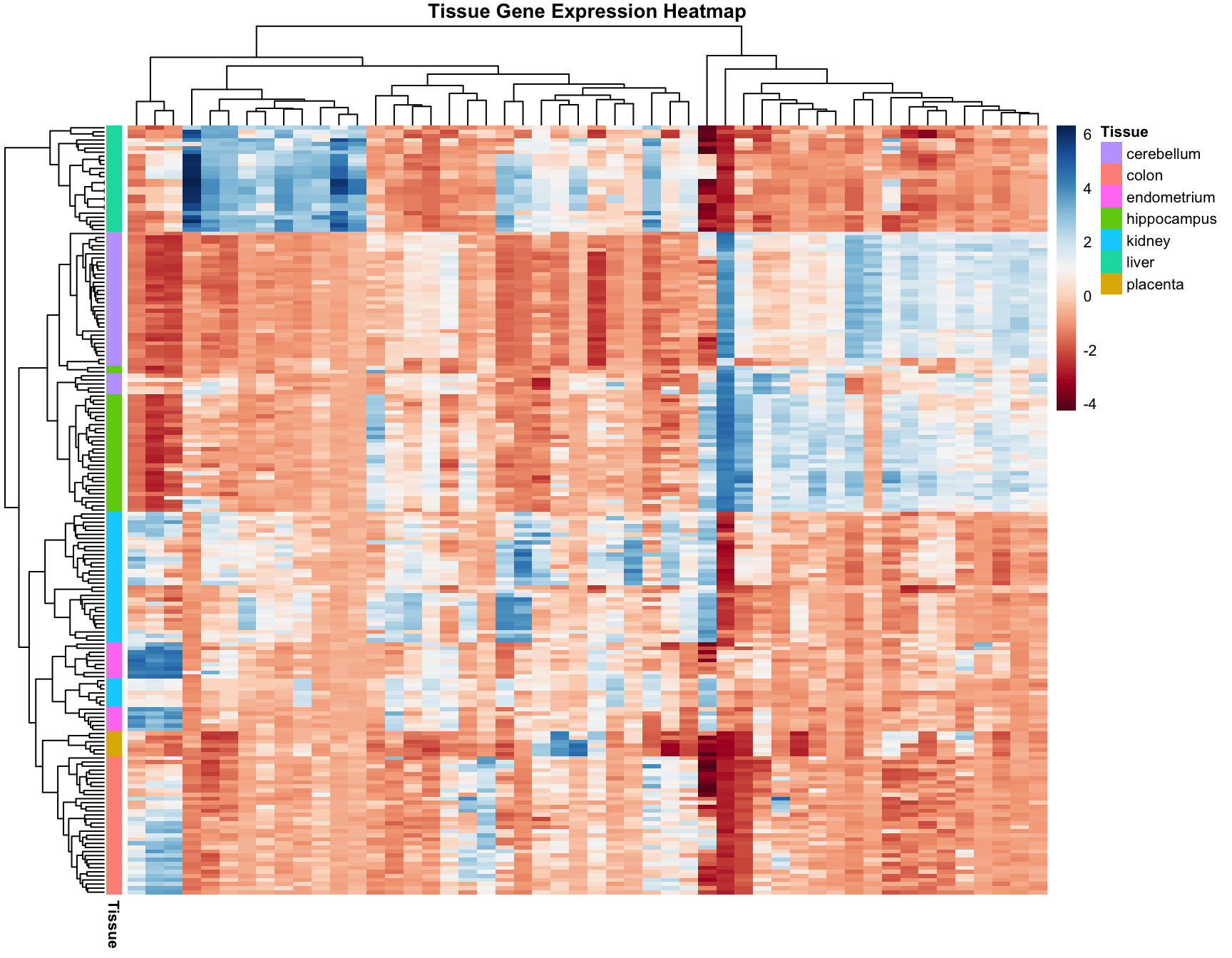

Figure 36.9: Enhanced heatmap using pheatmap with annotation tracks and customized appearance

36.7 Practical Considerations

Standardization

Features on different scales should be standardized before clustering:

Code
# Standardize features
x_scaled <- scale(x_tissue)

# This ensures all features contribute equally to distance calculations

Handling Missing Data

K-means cannot handle missing values. Options include:

  1. Remove observations or features with missing data
  2. Impute missing values
  3. Use algorithms that handle missingness (some hierarchical methods)

Cluster Validation

How do we know if clusters are “real”? Several approaches:

  1. Stability: Do clusters persist across different subsamples?
  2. External validation: Do clusters correspond to known groups?
  3. Internal metrics: Silhouette scores, within-cluster variance
Code
# Compare clusters to known tissue labels
table(Cluster = km_3$cluster, True = sample_data$x > 2)
       True
Cluster FALSE TRUE
      1    20    0
      2     0   26
      3    11    3

Reproducibility

K-means depends on random initialization. Always:

  1. Set a seed for reproducibility
  2. Use nstart to run multiple initializations
  3. Report the random seed used

36.8 Exercises

Exercise Clu.1: Distance Computation
  1. Load the tissue_gene_expression dataset. Remove the row means and compute the distance between each observation. Store the result in d.
Exercise Clu.2: Hierarchical Clustering
  1. Make a hierarchical clustering plot and add the tissue types as labels. Which tissues cluster together?
Exercise Clu.3: K-Means Clustering
  1. Run k-means clustering on the data with \(K = 7\). Make a table comparing the identified clusters to the actual tissue types. Run the algorithm several times to see how the answer changes.
Exercise Clu.4: Heatmap Visualization
  1. Select the 50 most variable genes. Create a heatmap with:
    • Observations in columns
    • Centered predictors
    • A color bar showing tissue types
    • Use ColSideColors argument and col = brewer.pal(11, "RdBu")
Exercise Clu.5: Comparing Linkage Methods
  1. Compare different linkage methods on the movie data. Which produces the most interpretable clusters?

36.9 K-Means vs Hierarchical Clustering

Aspect K-Means Hierarchical
Clusters Must specify K Can cut at any level
Structure Flat partition Nested hierarchy
Scalability O(nKt) - efficient O(n³) - slower
Shape Spherical clusters Arbitrary shapes
Missing data Cannot handle Some methods can
Reproducibility Depends on initialization Deterministic

36.10 Summary

  • Unsupervised learning discovers structure without predefined labels
  • Hierarchical clustering builds a tree showing nested relationships
    • Dendrograms visualize the hierarchy
    • Linkage methods define cluster-to-cluster distance
    • Cut the tree to form discrete clusters
  • K-means clustering partitions data into K groups
    • Minimizes within-cluster variance
    • Requires specifying K in advance
    • Use multiple starts to avoid local optima
  • Heatmaps combine clustering with data visualization
    • Color encodes values
    • Rows and columns reordered by similarity
    • Filter to high-variance features for clarity
  • Choosing K requires judgment and multiple criteria
    • Elbow method: look for bend in WSS curve
    • Silhouette analysis: measure cluster coherence
    • Domain knowledge should guide interpretation

36.11 Additional Resources

  • James et al. (2023) - Comprehensive treatment of clustering methods
  • Logan (2010) - Applications in biological research
  • Hahsler, M., Piekenbrock, M., & Doran, D. (2019). dbscan: Fast Density-Based Clustering with R
  • pheatmap and ComplexHeatmap package documentation for advanced heatmaps
